STMicroelectronics Product Overview: VND5004BTR-E

The VND5004BTR-E is a state-of-the-art automotive-grade double channel high-side driver manufactured by STMicroelectronics, a leader in the semiconductor industry. This advanced component is part of the VIPower M0-5 family and is specifically designed to deliver a compact, efficient, and reliable solution for driving resistive or inductive loads with one side connected to ground.

Key Features

• High-Side Switch: The VND5004BTR-E operates as a high-side switch, which allows for safe driving of the loads with one side connected to the chassis ground.
• Load Current Limitation: It provides active current limitation to protect the device from overload conditions.
• Thermal Shutdown: With its built-in thermal shutdown, it ensures protection against overheating, enhancing the longevity and reliability of the device.
• Integrated Diagnostics: The device features diagnostic functionalities for feedback on load status, overtemperature, and open load in the off-state, which are crucial for system monitoring and safety.
• Protection Features: It is equipped with a full set of protections, including overvoltage, undervoltage, and loss of ground and VCC protections.

Applications

The VND5004BTR-E is ideal for a wide range of automotive applications, such as:

• Lamp driving
• Heating resistors
• Motor driving

Technical Specifications

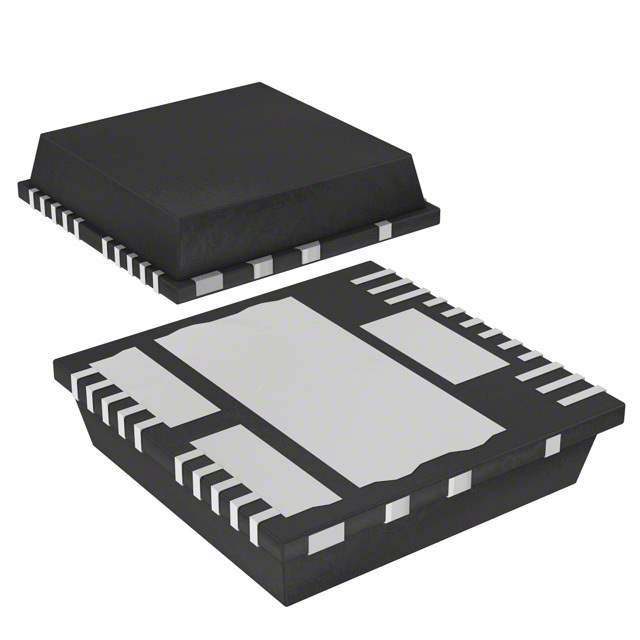

• Package: PowerSSO-36
• Operating Voltage Range: 5.5 V to 28 V
• Channel Current: Up to 28 A
• Temperature Range: -40°C to 150°C

The VND5004BTR-E is manufactured with STMicroelectronics' proprietary VIPower technology, ensuring robustness and optimized performance for automotive environments. Its compact PowerSSO-36 package makes it a perfect fit for space-constrained applications while providing the high power handling capability required in modern automotive designs.

With its combination of performance, diagnostics, and protection features, the VND5004BTR-E is a reliable and versatile solution for designers looking to enhance automotive electronic systems.
