Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Load Voltage (V) 4.5V ~ 36V
Supply Voltage Not Required
Current - Output (Maximum) 12A
Rds On 50mOhm (Maximum)
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C

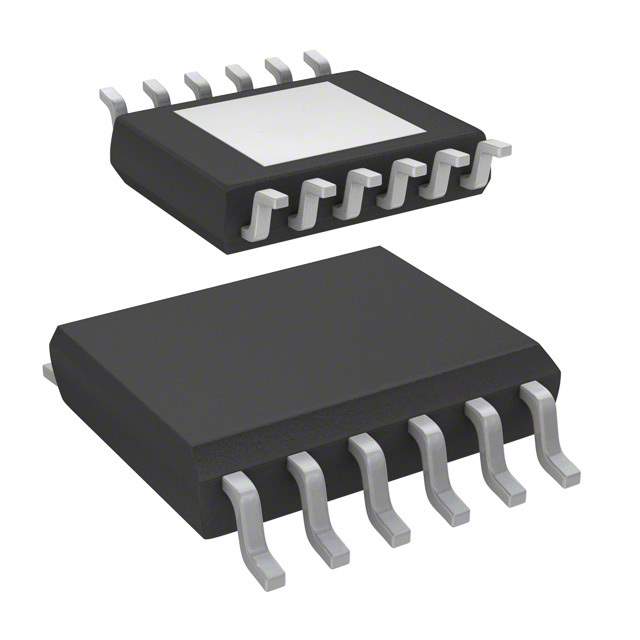

Manufacturer Package PowerSSO-12
Supplier Device Package PowerSSO-12
Family Part Number VND5050
Manufacturer Pack Quantity 100
MSL Level 3 (168 Hours)
Win Source Part Number 1279580-VND5050AJ-E
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VND5050AJ-E CAD Model

Description

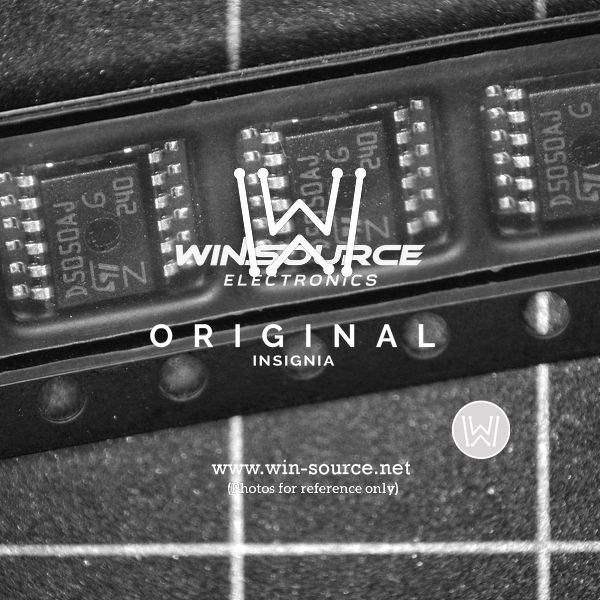

The VND5050AJ-E is a robust double channel high-side driver manufactured by STMicroelectronics, designed to drive automotive loads with high efficiency and reliability. This advanced PowerSSO-12 packaged component is part of ST's VIPower M0-5 family, offering a range of features that make it ideal for applications requiring high-side switch functionalities.

Key Features

  • High-Side Switch: Two independent channels capable of driving resistive, inductive, and capacitive loads with enhanced power management.
  • Current Rating: Each channel can handle continuous current up to 12A, making it suitable for high-power applications.
  • On-State Resistance: The low on-state resistance of 20 mΩ per channel ensures efficient operation with minimal power dissipation.
  • MultiSense Analog Feedback: Provides detailed diagnostic feedback including proportional load current sense, thermal sensing, and voltage sensing for each channel.
  • Protection Features: Equipped with overcurrent, overvoltage, undervoltage, and overtemperature protections to ensure the longevity and safety of the device and the load.
  • Compliant with Automotive Standards: Designed to meet the stringent requirements of automotive applications, including load dump and reverse battery protections.

Applications

The VND5050AJ-E is well-suited for a variety of automotive applications, including but not limited to:

  • Automotive lighting systems
  • Engine management systems
  • Body control modules
  • Car infotainment and multimedia systems

Benefits

With its robust design and comprehensive diagnostic features, the VND5050AJ-E ensures reliable performance in harsh automotive environments. The device simplifies circuit design by reducing the need for external components, thereby saving space and cost. Additionally, its built-in protections and feedback capabilities provide system designers with greater control and safety, making it an excellent choice for modern automotive applications.
