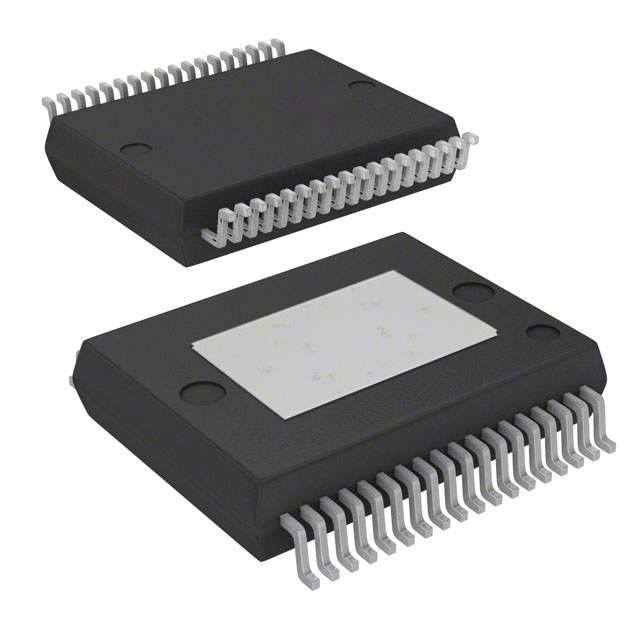

The VND5E012AYTR-E from STMicroelectronics is a cutting-edge automotive-grade double channel high-side driver, designed to manage electronic loads in automotive applications. This robust power switch is part of the VIPower™ M0-5 family and is specifically engineered to deliver outstanding performance and reliability for a wide range of automotive applications.
Key Features
- High-Side Switch: The VND5E012AYTR-E operates as a high-side switch, allowing for direct control of the load from the supply voltage.
- Current Control: It includes precise current control to safeguard the electronic components it manages.
- Thermal Shutdown: With built-in thermal shutdown, it ensures protection against overheating, enhancing the durability of the system.
- Load Dump Protection: The device is equipped with load dump protection, which shields the electronics from surges in the vehicle's power supply.
- Automotive Compliance: Fully compliant with automotive standards, the VND5E012AYTR-E is suitable for use in harsh vehicle environments.
Applications
The VND5E012AYTR-E is ideal for a variety of automotive applications, including but not limited to:
- Automotive interior lighting
- Engine control units
- Body control modules
- Indicator and headlight control systems
Product Specifications
- Package: PowerSSO-12
- Operating Voltage Range: 5.5 V to 36 V
- Output Current: Up to 12 A per channel
- Temperature Range: -40°C to +150°C
- Protection: Overload, overtemperature, and short circuit protection
The VND5E012AYTR-E is a testament to STMicroelectronics' commitment to providing advanced solutions for automotive electronics. With its robust design and comprehensive feature set, it stands as a reliable choice for designers looking to enhance the performance and safety of their automotive systems.
