Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 4.5 V to 28 V
Supply Voltage - Operating Not Required
Current - Output (Max) 7A
Rds On (Typ) 160 mOhm (Max)
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)

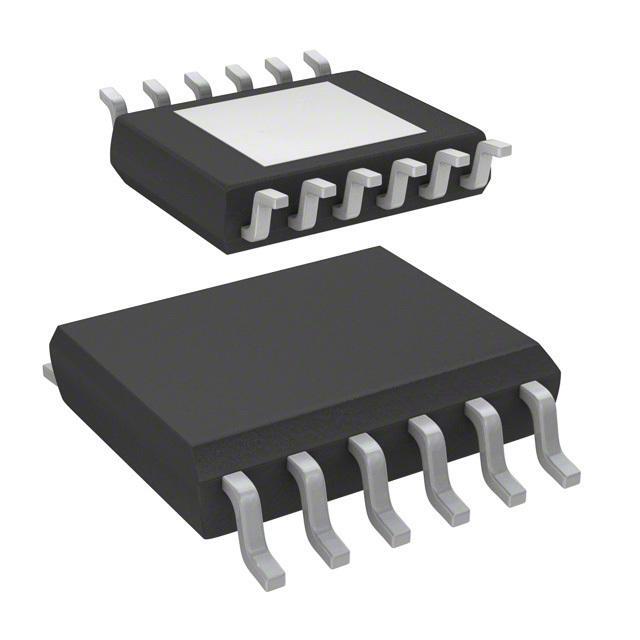

Case / Package PowerSSO-12
Win Source Part Number 036444-VND5E160AJTR-E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VND5E160AJ
Introduction Date September 13, 2004
ECCN EAR99
Country of Origin Morocco
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian VND5E160AJTR-E CAD Model

Description

The VND5E160AJTR-E from STMicroelectronics is a robust double channel high-side driver designed specifically for automotive applications that require high reliability and performance. This advanced device is part of the VIPower M0-7 series and is engineered to drive resistive, inductive, and capacitive loads with superior efficiency and control.

Key Features

  • High-Side Switch: The VND5E160AJTR-E operates as a high-side switch, allowing for direct control of the load from the supply voltage. This is particularly useful in automotive environments where ground connections can be unreliable.
  • MultiSense Analog Feedback: The device includes an integrated MultiSense analog feedback function that provides diagnostic capabilities. It can sense the load current, the voltage across the output, and the temperature of the chip, which is crucial for monitoring and protection purposes.
  • Current Limitation and Thermal Shutdown: With built-in current limitation and thermal shutdown features, the VND5E160AJTR-E ensures protection against overcurrent and overheating, enhancing the safety and longevity of the application.
  • Compliance with Automotive Standards: The device meets stringent automotive qualification standards, including compliance with the AEC-Q100 specification, making it suitable for use in harsh automotive environments.

Applications

The VND5E160AJTR-E is ideal for a variety of automotive applications that require reliable high-side power switching. These applications include, but are not limited to:

  • Automotive lighting systems, such as headlights, taillights, and interior lighting
  • Engine control units (ECUs)
  • Body control modules
  • Power distribution modules

Technical Specifications

  • Operating Voltage Range: 5.5V to 36V
  • On-State Resistance: Very low on-state resistance to minimize power dissipation
  • Package: HSSOP24 package designed for compact PCB layouts
  • Protection: Overvoltage, undervoltage, loss of ground, and loss of VCC protections

In conclusion, the VND5E160AJTR-E from STMicroelectronics is a highly capable and reliable solution for automotive high-side driving needs, offering advanced protection features, diagnostic capabilities, and compliance with automotive industry standards.
