Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series VIPower
Packaging Reel - TR
Switch Type General
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4 V ~ 28 V
Current - Output (Maximum) 21A
Rds On (Typ) 50 mOhm
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 12-LSOP (0.154", 3.90mm Width) Exposed Pad
Manufacturer Package PowerSSO-12
Win Source Part Number 1279606-VND7050AJ12TR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name VND7050AJ12
Introduction Date June 18, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VND7050AJ12TR CAD Model

Description

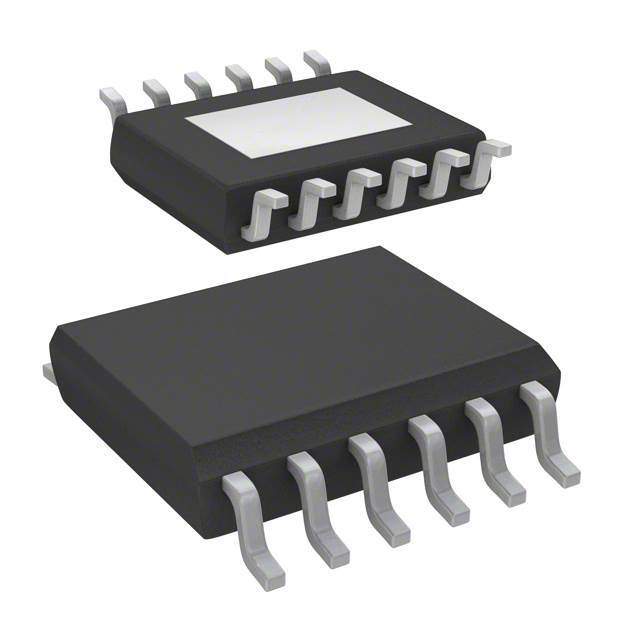

STMicroelectronics VND7050AJ12TR Automotive Power MOSFET

The VND7050AJ12TR is a cutting-edge automotive-grade power MOSFET from STMicroelectronics, designed to provide efficient power management within automotive applications. This robust component is part of ST's VIPower M0-7 series, offering an impressive array of features that cater to the demanding requirements of modern vehicle electronics.

Constructed with STMicroelectronics' proprietary VIPower technology, the VND7050AJ12TR is an H-bridge device that includes two independent high-side drivers. This configuration allows for direct control of the load, making it an ideal choice for driving resistive, inductive, and capacitive loads such as lights, heaters, and motors.

The device comes in a compact PowerSSO-12 package, which is optimized for surface mounting and ensures a small footprint on the PCB while providing excellent thermal performance. The VND7050AJ12TR is designed to operate within a wide voltage range, from 5.5V to 36V, making it versatile for various automotive applications, including those that require a direct battery connection.

One of the key features of the VND7050AJ12TR is its built-in protection systems. It includes overcurrent, overtemperature, and undervoltage shutdown, as well as load dump and reverse battery protection. These features safeguard the device and the application from the harsh electrical environment typically found in automotive applications. The inclusion of a current-sensing output allows for real-time monitoring of the load current, adding another layer of control and safety.

STMicroelectronics has also equipped the VND7050AJ12TR with a status feedback feature that communicates the state of the device to the microcontroller, ensuring that the system can react promptly to any fault conditions. The device's fast demagnetization of inductive loads is another notable feature, which is particularly useful for applications that require rapid switching off of inductive loads to prevent damage or excessive power dissipation.

Overall, the VND7050AJ12TR from STMicroelectronics is a highly reliable and efficient solution for automotive power management, offering protection, control, and performance in a compact package, making it a top choice for automotive system designers.
