Products specifications Report Issue?

Manufacturer STMicroelectronics
Win Source Part Number 1280681-X0402NF
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian X0402NF CAD Model

Description

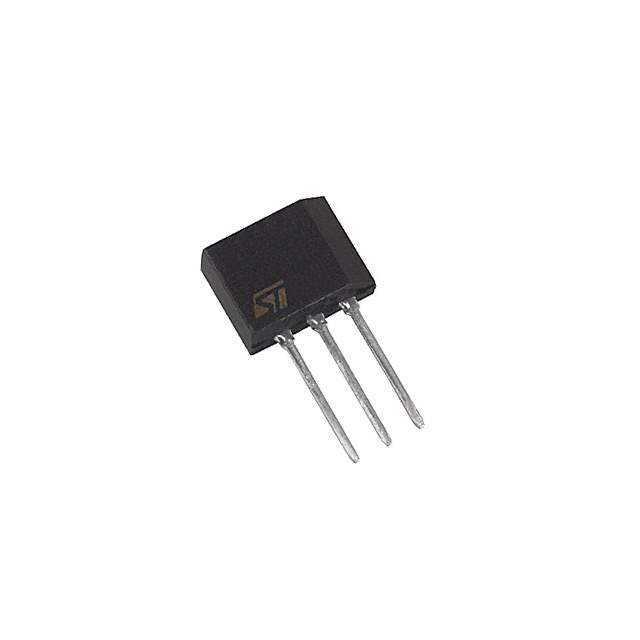

The Product X0402NF is a state-of-the-art semiconductor device manufactured by STMicroelectronics, a global leader in the electronics and semiconductor industry. This device is part of STMicroelectronics' extensive SCR (Silicon Controlled Rectifier) portfolio, designed to provide efficient and reliable performance in a wide range of applications.

Key Features

  • High Surge Capability: The X0402NF is capable of handling high surge currents, making it suitable for applications that experience short-term overloads.
  • Low Gate Trigger Current: It requires a low gate trigger current to switch on, which allows for direct interfacing with microcontrollers and other logic-level devices.
  • Repetitive Peak Off-state Voltage: With a high repetitive peak off-state voltage, this SCR can block high voltage in the off-state, ensuring the safety and longevity of the device.
  • Gate Trigger Voltage: The device features a specified range of gate trigger voltage, providing flexibility and control in various circuit conditions.
  • Compact Package: The X0402NF comes in a compact, surface-mount package, which saves valuable board space and is ideal for high-density circuit designs.

Applications

The versatility of the X0402NF SCR allows it to be used in an array of applications, including but not limited to:

  • Overvoltage crowbar protection
  • Motor control circuits
  • Capacitive discharge ignition systems
  • Power management in portable devices
  • Controlled rectifier bridges

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The X0402NF is built with the highest standards of quality and reliability in mind, ensuring that it meets the stringent requirements of industrial and consumer applications. It is designed to provide a long operational life and stable performance throughout its lifespan.

Environmental Compliance

The X0402NF is manufactured with environmental sustainability in mind. It complies with international environmental standards, including RoHS and REACH, which restricts the use of certain hazardous substances in electrical and electronic equipment.
