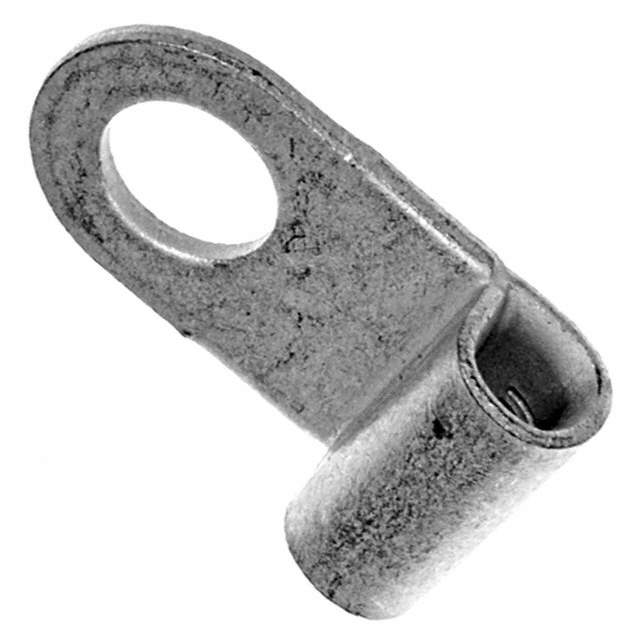

325069 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr TE Connectivity
Series Solistrand
Package Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.579" (14.71mm)
Mounting Type Free Hanging (In-Line), Right Angle
Termination Crimp, Flag
Wire Gauge 14-16 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Color -
Contact Material Copper
Contact Finish Tin
Insulation Diameter -
Material - Insulation -
Base Product Number 3250
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 1,000 pcs
Win Source Part Number 1380757-325069
Ultra Librarian 3D Model Ultra Librarian 325069 CAD Model

Description

The Solistrand series offers ring connectors for various applications. This particular ring connector is suitable for wire gauges of 14-16 AWG. It features a brazed seam and serrated termination for secure connections.

  • Termination: Crimp
  • Termination Type: Flag
  • Material: Copper
  • Finish: Tin
  • Insulation: Non-Insulated
  • Stud/Tab Size: 8 Stud
  • Mounting Type: In-Line or Right Angle
  • Packaging: Bulk
  • Pieces per Package: 1,000
  • REACH Status: Unaffected
