Products specifications

Category Circuit Protection>TVS - Diodes
Manufacturer STMicroelectronics
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 5.8V
Voltage - Clamping (Max) @ Ipp 9V (Typ)
Current - Peak Pulse (10/1000µs) 11A (8/20µs)
Power - Peak Pulse 110W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 110pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Surface Mount
Case / Package 0201 (0603 Metric)
Supplier Device Package ST0201
Base Product Number ESD051
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 15,000
Win Source Part Number 1334862-ESD051-1F4
Ultra Librarian 3D Model Ultra Librarian ESD051-1F4 CAD Model

Description

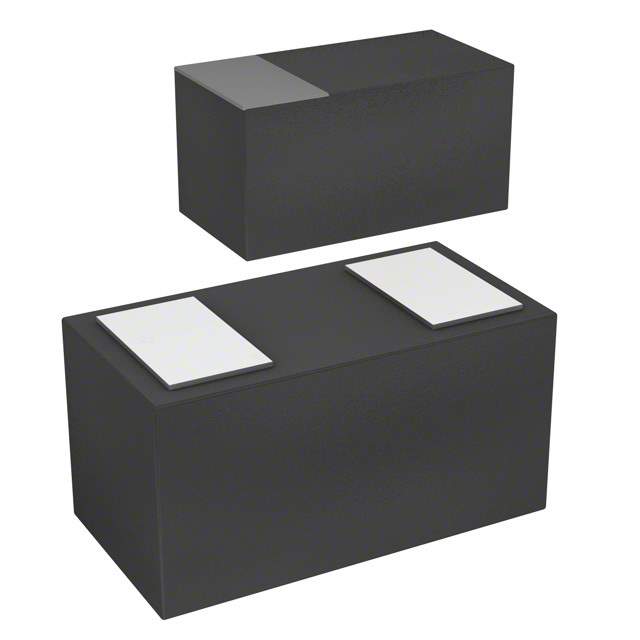

STMicroelectronics ESD051-1F4 Transient Voltage Suppressor

The ESD051-1F4 from STMicroelectronics is a cutting-edge transient voltage suppressor (TVS) designed to protect sensitive electronic equipment from electrostatic discharge (ESD) and other voltage-induced transient events. This component is a critical asset for safeguarding high-speed data lines and other vulnerable circuits in a wide range of applications, from consumer electronics to industrial systems.

Key Features

  • Stand-off Voltage: The ESD051-1F4 offers a stand-off voltage of 5V, providing an optimal balance between protection and signal integrity for many applications.
  • Low Capacitance: With a low input capacitance, this device ensures minimal signal attenuation, making it ideal for high-speed data interfaces.
  • High ESD Protection: It is capable of withstanding ESD discharges up to 15kV (air discharge) and 8kV (contact discharge) as per the IEC 61000-4-2 standard, offering robust protection for your sensitive components.
  • Single-Line Protection: Designed to protect a single line, the ESD051-1F4 can be easily implemented in a variety of circuit configurations.
  • SOT323-3L Package: The small SOT323-3L package allows for efficient use of board space, which is crucial in today's compact electronic designs.

Applications

The ESD051-1F4 is versatile and can be used in numerous applications, including:

  • USB 2.0 and 3.0 ports
  • HDMI and DisplayPort interfaces
  • Smartphone and tablet I/O ports
  • Serial and parallel ports
  • LAN/WAN equipment
  • Portable electronics
  • Set-top boxes
  • Notebook and desktop computers

Advantages

The ESD051-1F4 provides a number of advantages to designers and engineers looking to enhance the durability and reliability of their electronic systems. Its low capacitance ensures high-speed signal integrity is maintained, while its high ESD protection level safeguards against common electrostatic threats. The compact package size makes it an excellent choice for space-constrained applications without compromising on performance.

STMicroelectronics' commitment to quality and performance makes the ESD051-1F4 a top choice for those who need reliable transient voltage suppression in their electronic designs.
