Same model may have multiple batches, images only for reference.

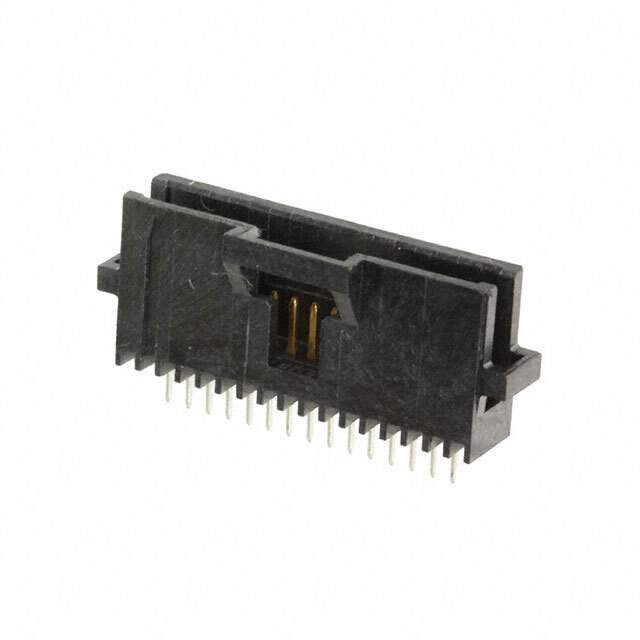

5-104071-3 Real Image
Same model may have multiple batches, images only for reference.

5-104071-3

Part No 5-104071-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 15POS .050 VERT GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Number of Positions 15
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.100" (2.54mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150μin (3.81μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 056935-5-104071-3
Popularity Medium
Supply and Demand Status Balance
Quantity per package 21
Ultra Librarian 3D Model Ultra Librarian 5-104071-3 CAD Model

Description

Product Overview

The 5-104071-3 is a high-quality component designed for a variety of electronic applications. Known for its reliability and durability, it’s an ideal choice for both professional and hobbyist projects.

Applications and Projects

  • Consumer electronics
  • Home automation systems
  • Industrial controls
  • Automotive electronics

Features and Benefits

  • High Durability: Built to withstand tough conditions.
  • Reliable Performance: Ensures consistent functionality over time.
  • Cost-Effective: Provides great value for its price.

Additional Details

This component is particularly well-suited for projects requiring stable and long-lasting hardware components.
