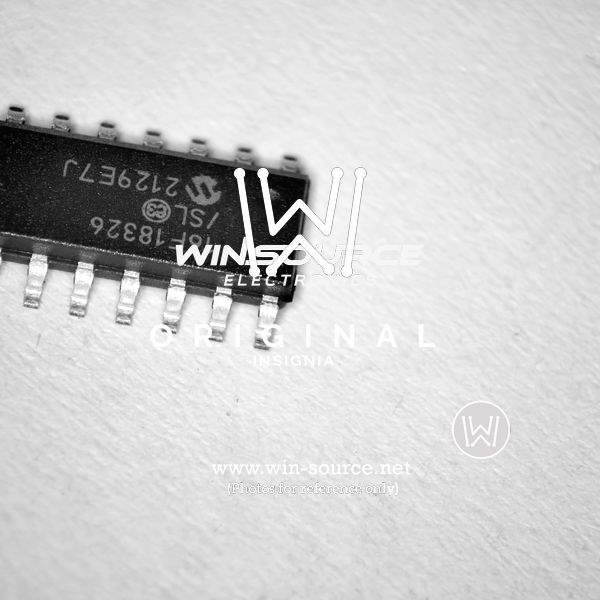

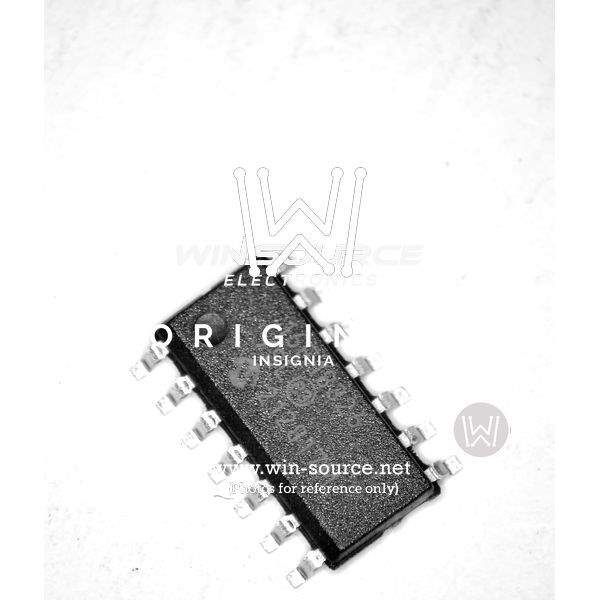

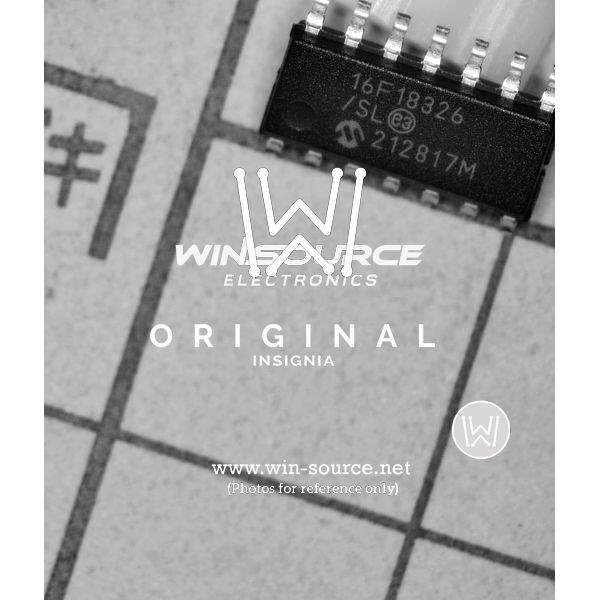

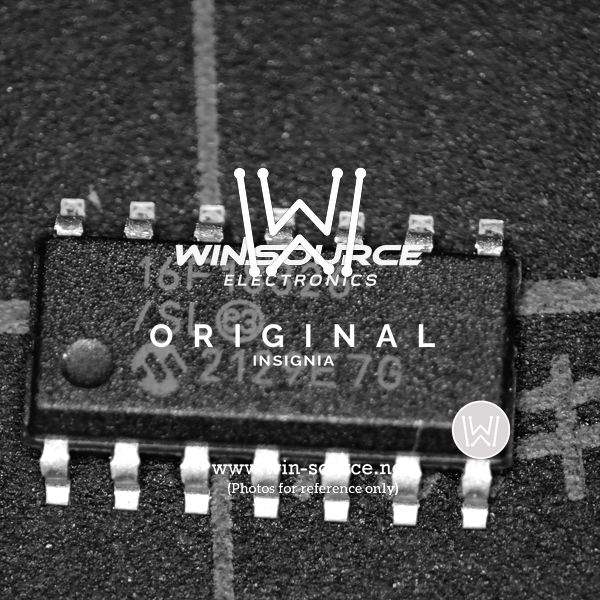

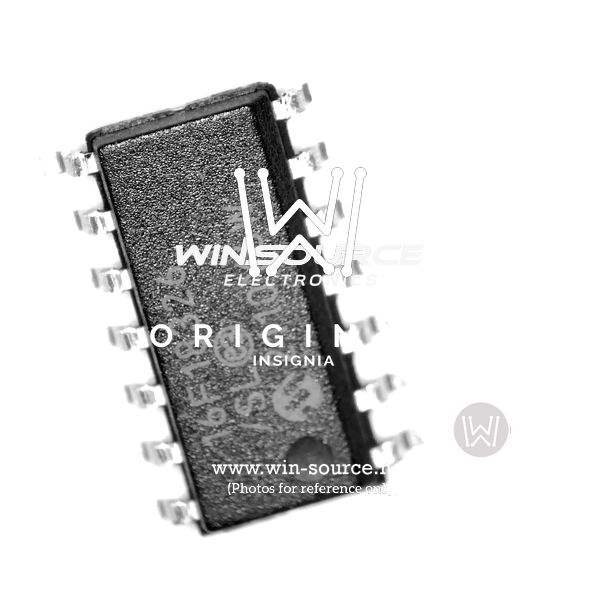

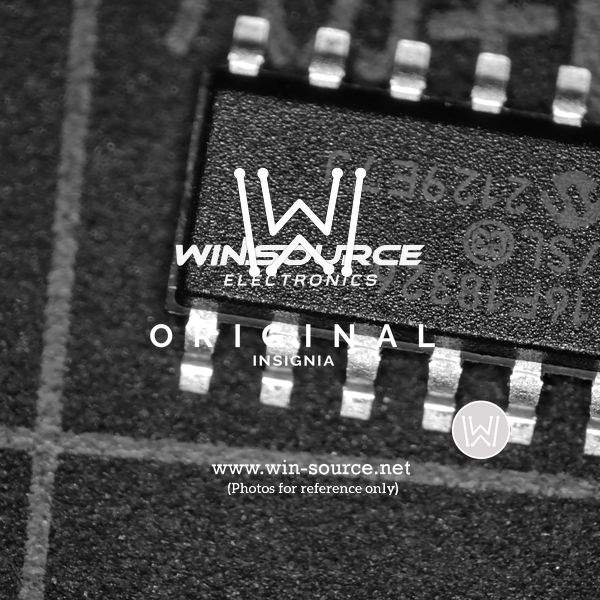

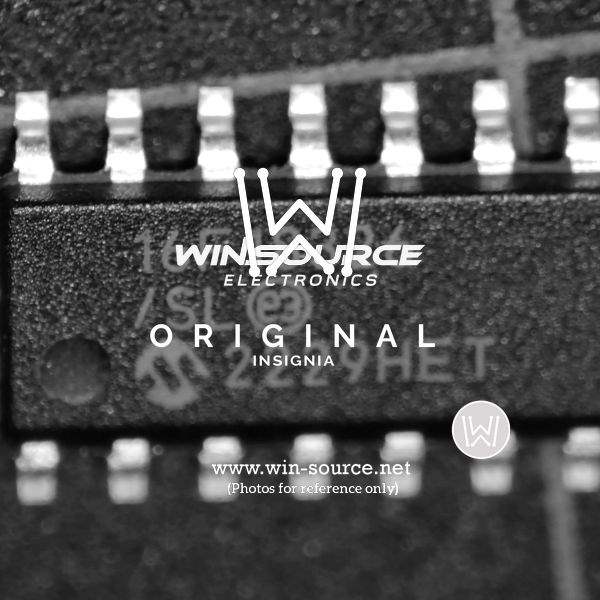

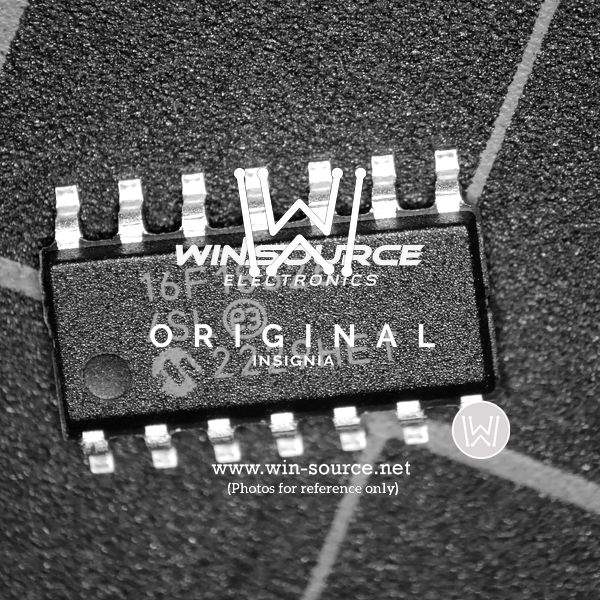

Microchip Technology's PIC16F18326-I/SL Microcontroller
The PIC16F18326-I/SL is a high-performance, 8-bit microcontroller unit (MCU) from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This MCU is part of the PIC16F family of microcontrollers that are renowned for their ease of use, flexibility, and low-power consumption.
Featuring a 14-pin package, the PIC16F18326-I/SL is packed with advanced features that make it ideal for a wide range of applications in industries such as automotive, consumer electronics, aerospace, and industrial automation. It is designed to operate with a voltage range of 2.3V to 5.5V, which allows for flexibility in power-sensitive applications.
One of the key features of the PIC16F18326-I/SL is its Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels. It boasts a flash memory size of 3.5KB, which provides ample space for application code. Additionally, it includes 256 bytes of EEPROM for data storage and 512 bytes of RAM for efficient processing.
The microcontroller supports various communication protocols, including I2C, SPI, and EUSART, which enable easy integration with peripheral devices and other microcontrollers. It also features Core Independent Peripherals (CIPs), such as Complementary Waveform Generator (CWG), Numerically Controlled Oscillator (NCO), and multiple timers, which help to offload timing-critical and core-intensive tasks from the CPU, thus enhancing system efficiency.
For analog functions, the PIC16F18326-I/SL is equipped with an integrated 10-bit Analog-to-Digital Converter (ADC) with Computation (ADC2), allowing for advanced control and monitoring capabilities. Additionally, it has two PWM modules for precise control in power management and LED dimming applications.
Microchip Technology has also incorporated several safety features into this MCU, including Brown-out Reset (BOR), Power-on Reset (POR), and Watchdog Timer (WDT) to ensure reliable operation under varying conditions. The device is also supported by Microchip's MPLAB® Code Configurator (MCC) for simplified development and MPLAB X Integrated Development Environment (IDE) for advanced programming and debugging.
The PIC16F18326-I/SL is a versatile and powerful microcontroller that offers a perfect blend of performance, power efficiency, and ease of use, making it an excellent choice for designers looking to optimize their embedded systems.
