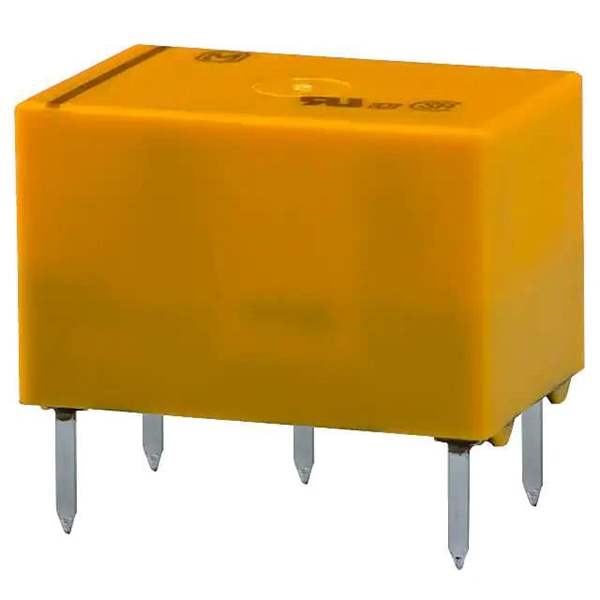

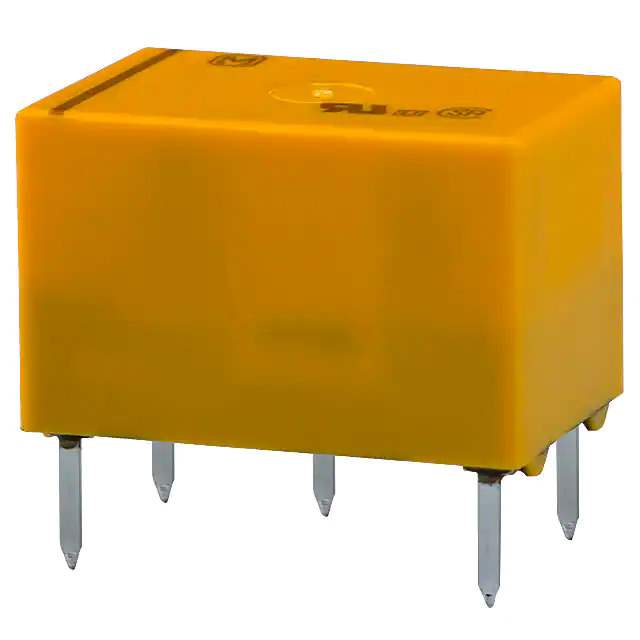

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series DS
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 62.5 Ohms
Base Product Number DS1E
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 586358-DS1E-M-DC5V
Ultra Librarian 3D Model Ultra Librarian DS1E-M-DC5V CAD Model

Description

The DS1E-M-DC5V is a high-quality signal relay designed for various electronic applications. It belongs to the DS series and features a PC pin termination style.

  • Series: DS
  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver (Ag) and Gold (Au)
  • Coil Resistance: 62.5 Ohms
  • Coil Current: 80 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 70°C
  • Manufacturer: Panasonic
  • Status: Active
