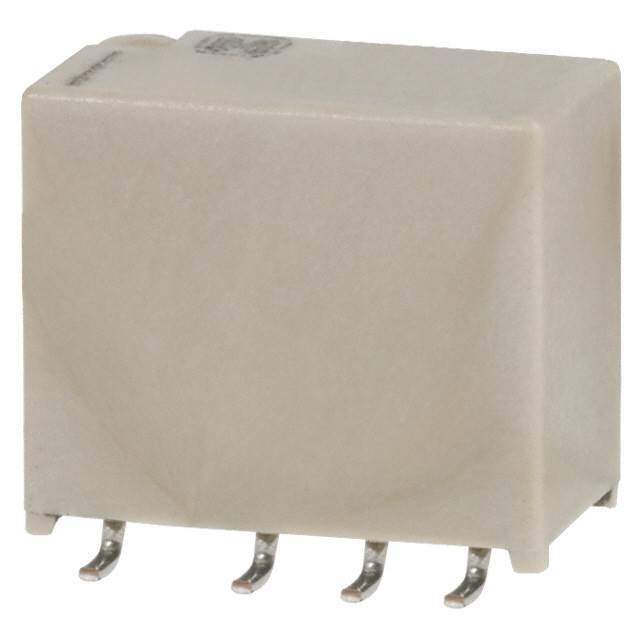

AGN200S12Z Real Image
Same model may have multiple batches, images only for reference.

AGN200S12Z

Part No AGN200S12Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 12VDC  /  Telecom Relay DPDT (2 Form C) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series AGN
Package Tape & Reel (TR)
Mounting SMD (SMT)
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 11.7 mA
Coil Type Non Latching
Termination Style Gull Wing
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type Telecom
Coil Resistance 1.03 kOhms
Base Product Number AGN200
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1853-2,Q4152450,AGN200S12Z-ND
Standard Package 500
Win Source Part Number 1223086-AGN200S12Z
Ultra Librarian 3D Model Ultra Librarian AGN200S12Z CAD Model

Description

The Panasonic Electric Works AGN200S12Z is a DPDT (2 Form C) telecom relay.

  • Contact Rating Current: 1A
  • Switching Voltage: 125VAC and 110VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 1.03 kOhms
  • Coil Current: 11.7 mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Termination Style: Gull-wing
  • Latching: Non-Latching
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1.2VDC
  • Operating Temperature Range: -40℃ to 85℃
  • Package: Tape and Reel
  • Standard Package: 500
  • Category: Signal Relays, Up to 2 Amps
  • Series: AGN
