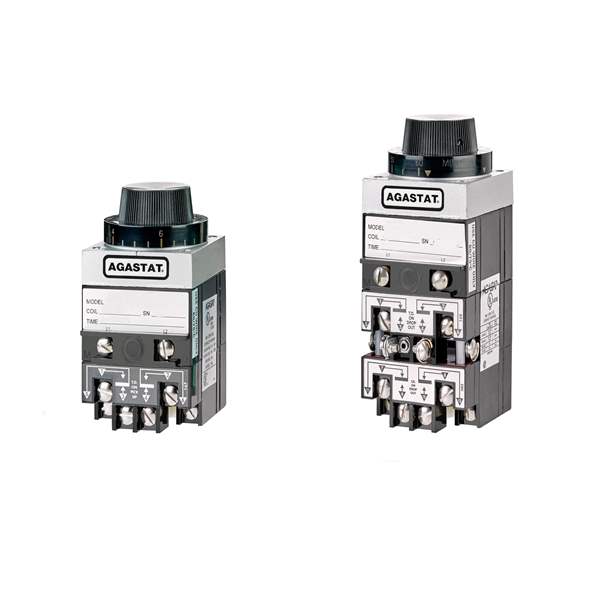

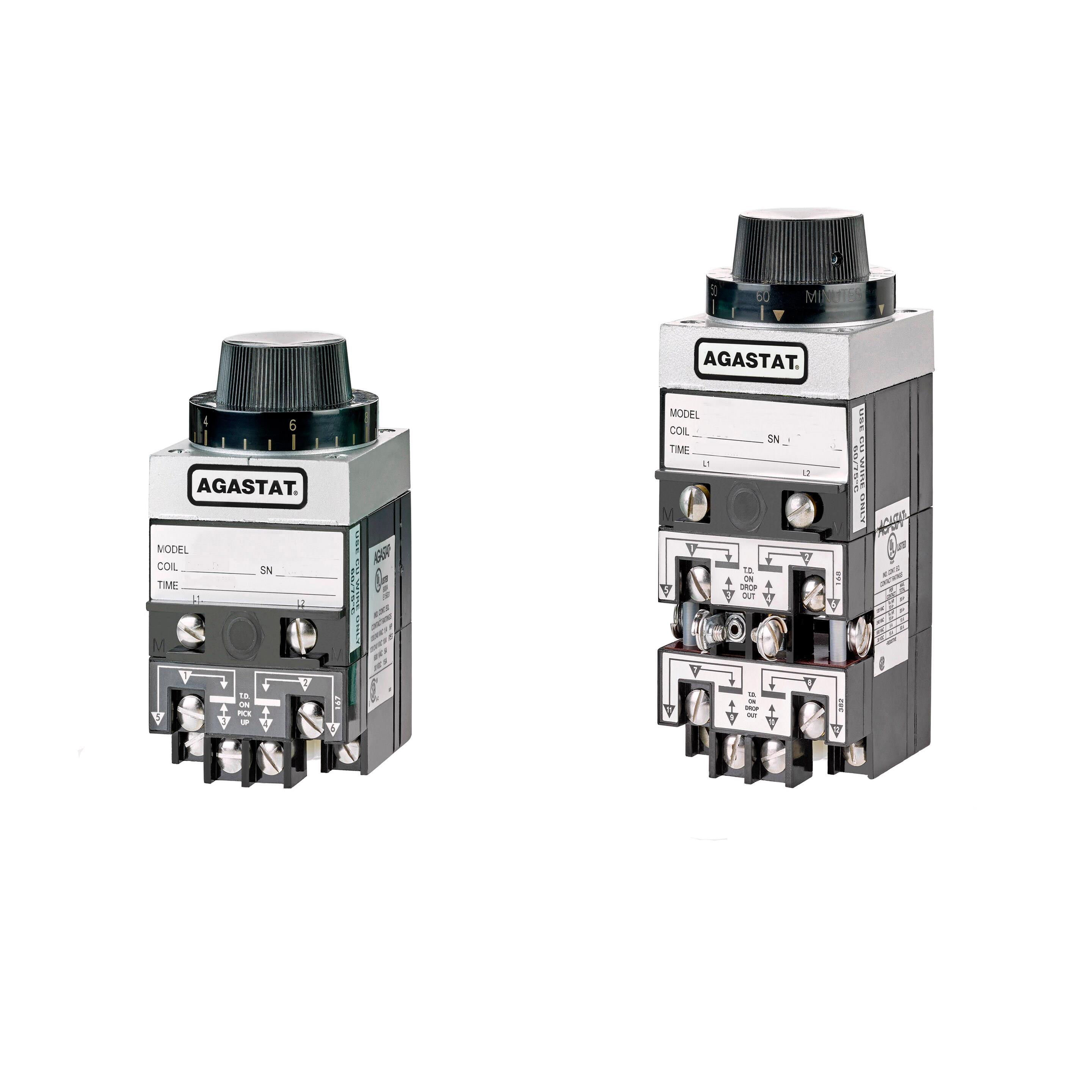

7012BD TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Panel Mount
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 5 Sec ~ 50 Sec
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 240VAC
Termination Style Screw Terminal
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1550868-7012BD
Ultra Librarian 3D Model Ultra Librarian 7012BD CAD Model
