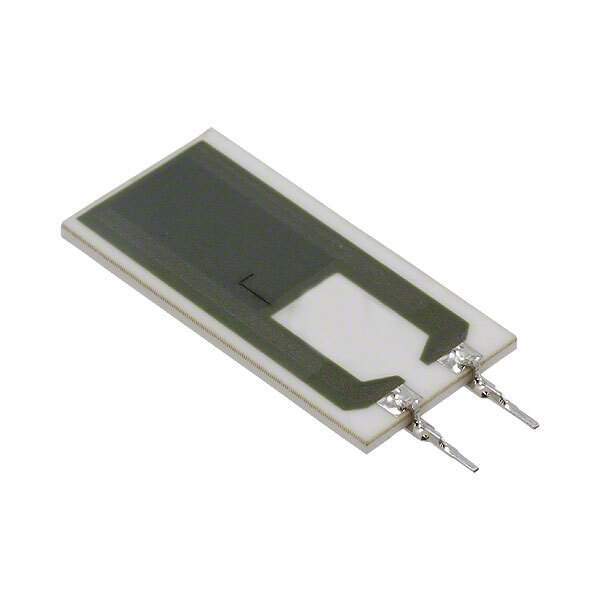

MPC52201J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series MPC, CGS
Package Tray
Resistance 200 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Thick Film
Features Flame Proof, Non-Inductive, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case Radial
Dimension 0.500" L x 0.100" W (12.70mm x 2.54mm)
Height - Seated (Max) 1.000" (25.40mm)
Number of Terminations 2
Base Product Number MPC52
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names 1623776-9,A106163,1623776-9-ND,16237769
Standard Package 1,000
Win Source Part Number 1080060-MPC52201J
Ultra Librarian 3D Model Ultra Librarian MPC52201J CAD Model

Description

This TE Connectivity Passive Product electronic component is a resistor that falls under the category of Through Hole Resistors.

  • Resistance: 200 Ohms
  • Power: 5W
  • Feature: non-inductive, flame proof, and has a safety feature
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
