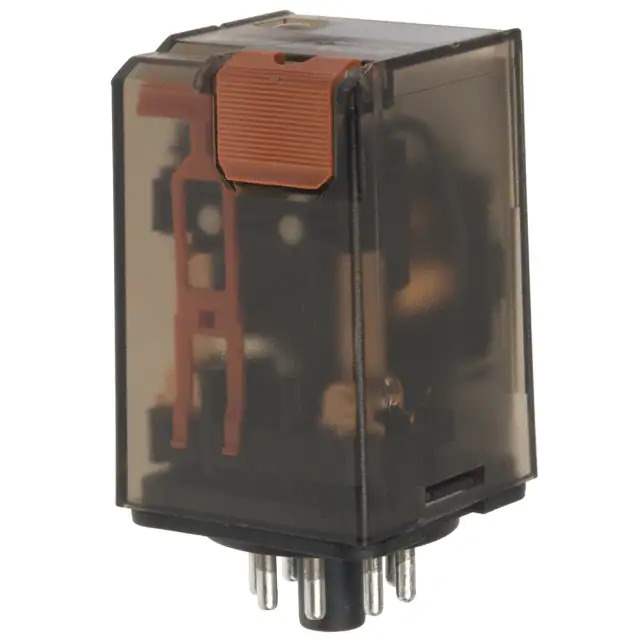

MT221024 Real Image
Same model may have multiple batches, images only for reference.

MT221024

Part No MT221024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series MT, SCHRACK
Package Tray
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Non Latching
Features Test Button
Termination Style Plug In, 8 Pin (Octal)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 475 Ohms
Base Product Number MT22
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 645045-MT221024
Ultra Librarian 3D Model Ultra Librarian MT221024 CAD Model

Description

The MT221024 is a power relay from TE Connectivity.

  • Series: MT and SCHRACK
  • Termination Style: Plug-in, 8-pin (octal)
  • Contact Form: Double pole double throw (DPDT)
  • Contact Material: Silver nickel (AgNi)
  • Packaging: Tray
  • Standard Package: 25 pieces
  • Coil Resistance: 475 Ohms
  • Coil Current: 50 mA
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • Relay Type: General-purpose
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating: 10A
  • Switching Voltage: 400VAC maximum
  • Temperature Range: -40°C to 60°C
  • Must Operate Voltage: 18VDC
  • Must Release Voltage: 2.4VDC
  • REACH: Unaffected
  • HTSUS Code: 8536.41.0050
  • Manufacturer: TE Connectivity
