Texas Instruments CDCVF2510PW Clock Buffer
The Texas Instruments CDCVF2510PW is a high-performance, 3.3V Phase-Locked Loop (PLL) clock driver designed to meet the demanding requirements of synchronous memory systems. This precision clock distribution device is tailored to distribute one clock input to ten outputs with minimal skew and jitter, ensuring reliable operation and synchronization across all outputs.

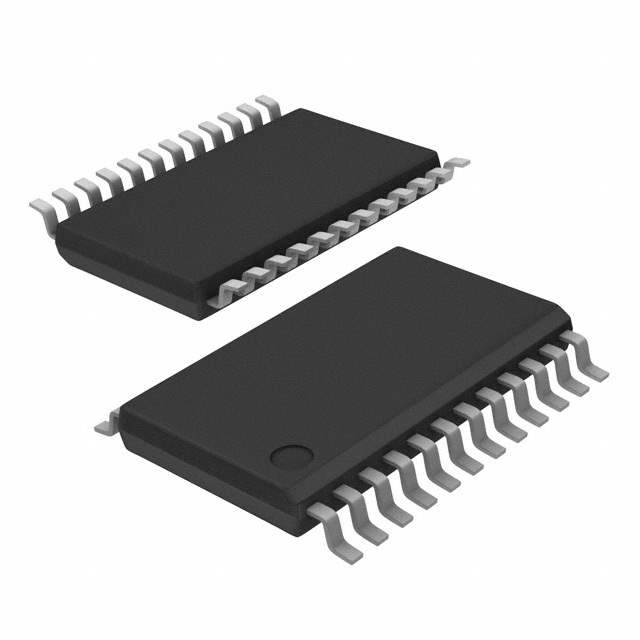

Encased in a compact 24-pin TSSOP package, the CDCVF2510PW is engineered to provide a low-skew, low-jitter clock distribution solution that is essential for today's high-speed digital systems. The device supports a wide range of input frequencies, making it a versatile choice for various applications including synchronous DRAM, graphics memory systems, and other memory and logic applications requiring multiple clock outputs with tight timing constraints.
Key Features:
- Low Skew: The device guarantees low output-to-output skew, ensuring that all clock signals arrive at their destinations simultaneously, enhancing system reliability and performance.
- PLL Clock Distribution: The integrated PLL allows for a stable distribution of the clock signal, even when faced with varying load conditions or changes in input frequency.
- Multiple Outputs: With ten clock outputs, the CDCVF2510PW can drive multiple loads, reducing the need for additional clock buffer components and simplifying the design.
- Wide Operating Frequency Range: The device can handle a broad range of input frequencies, providing flexibility for use in different system designs.
- 3.3V Operation: Designed for 3.3V power supply systems, it aligns with common industry voltage standards, ensuring compatibility with a wide array of digital systems.
- Industrial Temperature Range: The CDCVF2510PW is rated for operation over the industrial temperature range, making it suitable for harsh environments.
With its precise clock distribution capabilities, the CDCVF2510PW from Texas Instruments is an ideal solution for designers looking to optimize their high-speed digital systems. Its robust feature set ensures that it can meet the stringent timing requirements of synchronous memory interfaces, while also providing the flexibility needed for a wide range of other applications.
For additional information, including detailed specifications, timing diagrams, and application notes, designers are encouraged to consult the Texas Instruments datasheet for the CDCVF2510PW.
