Overview of Texas Instruments DCP021205PG4

The Texas Instruments DCP021205PG4 is a high-performance, isolated DC-DC converter module that offers a compact and efficient power solution for a wide range of applications. This product is part of TI's DCP02 series, known for its reliability and advanced features designed to meet the stringent requirements of industrial, telecommunications, and data acquisition systems.

Key Features

• Isolation: The DCP021205PG4 provides an impressive 1500Vrms of galvanic isolation, which helps to protect sensitive electronic components from high voltage transients and reduces noise coupling.
• Output Power: It offers a regulated dual output of +/-5V, with an output power rating of up to 2W. This makes it suitable for powering a variety of analog and digital circuits.
• Efficiency: With an efficiency of up to 85%, this DC-DC converter ensures minimal power loss and heat generation, enhancing system reliability and performance.

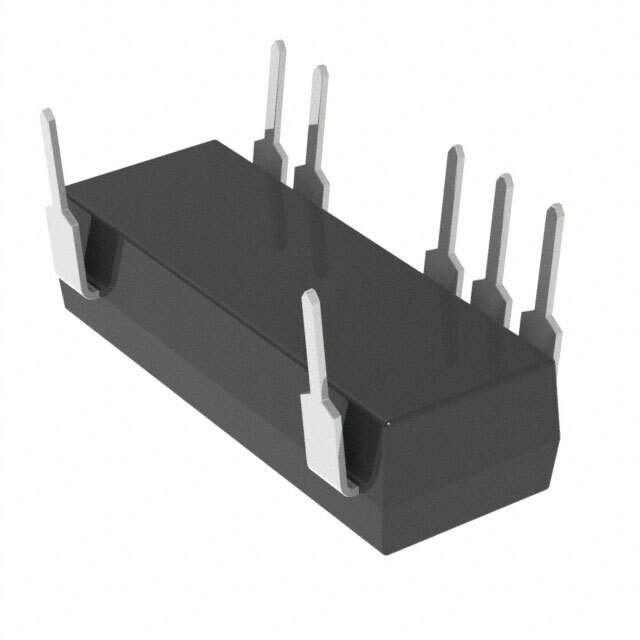

• Package: The device comes in a compact 7-pin DIP (Dual In-line Package) that is easy to install and occupies minimal space on a printed circuit board (PCB).
• Temperature Range: It operates over a wide industrial temperature range from -40°C to +85°C, ensuring stable performance under varying environmental conditions.

Applications

The versatility of the DCP021205PG4 makes it suitable for a diverse array of applications, including:

• Isolated sensor interfaces
• Industrial control systems
• Test and measurement equipment
• Data acquisition systems
• Telecommunication devices

Quality and Reliability

Texas Instruments is renowned for its commitment to quality, and the DCP021205PG4 is no exception. It is designed to meet rigorous industry standards, ensuring long-term reliability and performance. The product is RoHS compliant and supported by TI's comprehensive technical documentation, making integration into your designs seamless and straightforward.

In summary, the DCP021205PG4 from Texas Instruments is a robust and efficient solution for your isolated power requirements, combining high isolation, dual output, and excellent efficiency in a small package, making it an ideal choice for a multitude of electronic applications.
