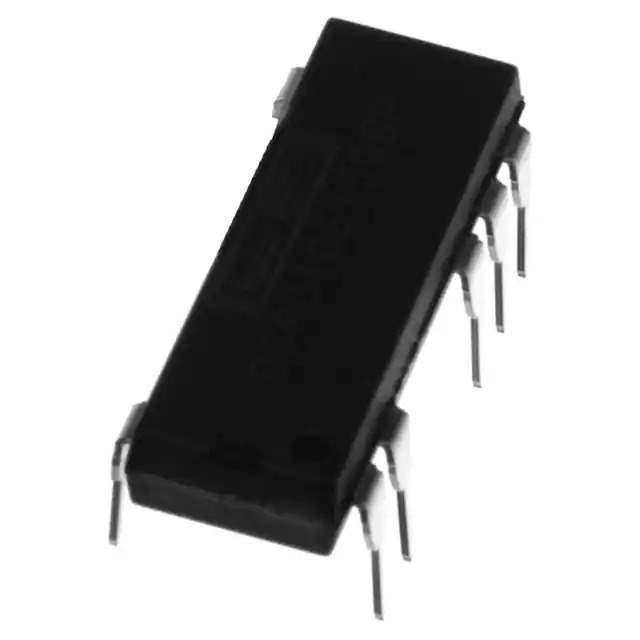

The DCV010505P is a highly efficient, miniaturized power module from Texas Instruments, renowned for their innovative approach to power management solutions. This particular model is a part of the DCV01 series, which are isolated, unregulated DC-DC converter modules designed to offer both high performance and reliability for a wide range of applications.

Key Features

• Input Voltage Range: The DCV010505P operates on an input voltage range of 4.5V to 5.5V, making it ideal for standard 5V supply systems.
• Output Voltage: It provides an isolated output of 5V, which is crucial for applications that require electrical isolation between input and output for noise immunity or safety purposes.
• Power Rating: This module can deliver up to 1W of output power, suitable for low-power applications.
• Isolation: It offers a high isolation voltage of 1000Vrms, minimizing the risk of electrical interference between the input and output.
• Package: The DCV010505P comes in a compact DIP (Dual-In-line Package), which is easy to integrate into various PCB designs.
• Efficiency: With an efficiency rating of up to 85%, it ensures minimal power loss and heat generation.
• Temperature Range: It operates within an industrial temperature range of -40°C to +85°C, making it suitable for harsh environments.

Applications

The DCV010505P is versatile and can be used in a variety of applications, including but not limited to:

• Isolated sensor interfaces
• Industrial control systems
• Data acquisition systems
• Test and measurement equipment
• Telecommunication devices

With its compact size, the DCV010505P is especially beneficial for space-constrained applications. Its ability to provide isolated power with high efficiency and reliability makes it a go-to choice for engineers and designers looking to enhance their systems with a dependable power solution.
