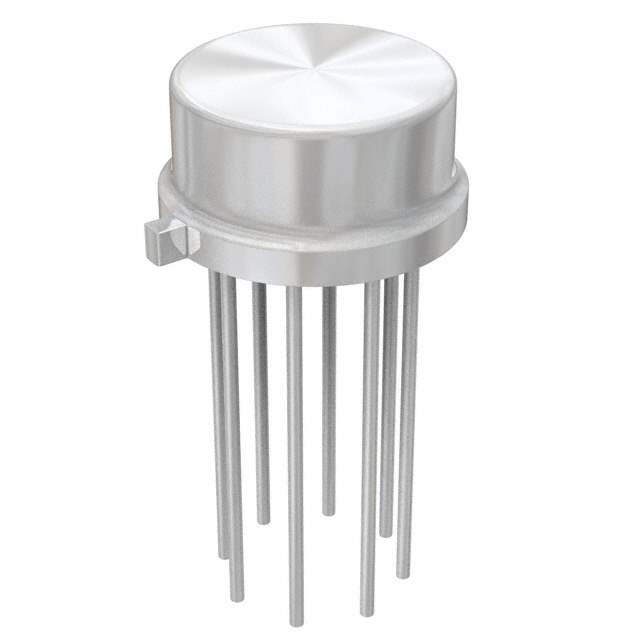

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type Instrumentation
Number of Circuits 1
Slew Rate 0.4 V/μs
-3db Bandwidth 300kHz
Current - Input Bias 10nA
Voltage - Input Offset 10μV
Operating Supply Current 6.7mA
Channel Output Current 10mA
Supply Voltage - Operating ±5 V to 20 V
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Case / Package TO-100-10
Win Source Part Number 084577-INA101SM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian INA101SM CAD Model

Description

The INA101SM is a high-quality precision gain instrument amplifier from Texas Instruments.

  • Design: Monolithic instrumentation amplifier based on a precision op-amp design.
  • Gain: 1 to 1000 without the need for external resistors
  • Offset Voltage: 25µV (max)
  • Offset Voltage Drift: 0.3µV/°C
  • Common-Mode Rejection Ratio (CMRR): 106dB (min) @ G = 1
  • Power Supply Range: ±2.25V to ±18V
  • Bandwidth: 1.5MHz (G = 1)
  • Package: Compact SOIC-16 package
  • Operating Temperature: -25°C to +85°C
