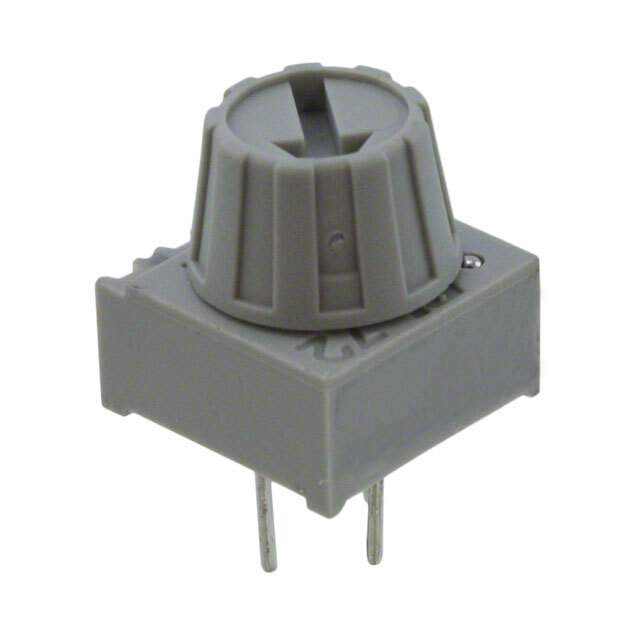

72PTR10KLF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer TT Electronics/BI
Series 72
Packaging Bulk
Resistance (Ohms) 10k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Square - 0.375" x 0.375" Face x 0.187" H (9.53mm x 9.53mm x 4.75mm)
Win Source Part Number 764730-72PTR10KLF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name 72
Introduction Date October 26, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 72PTR10KLF CAD Model

Description

The TT Electronics/BI 764730-72PTR10KLF from TT Electronics/BI is a potentiometer/variable resistor.

  • Resistance: 10k ohms
  • Tolerance: ±10%
  • Power Rating: 0.5W
  • Series: 72 series
  • Face: 0.375" x 0.375"
  • Height: 0.187" H (9.53mm x 9.53mm x 4.75mm)
  • Mounting Style: Through-hole
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • EOL Date: 2027
  • Halogen-Free: Yes
