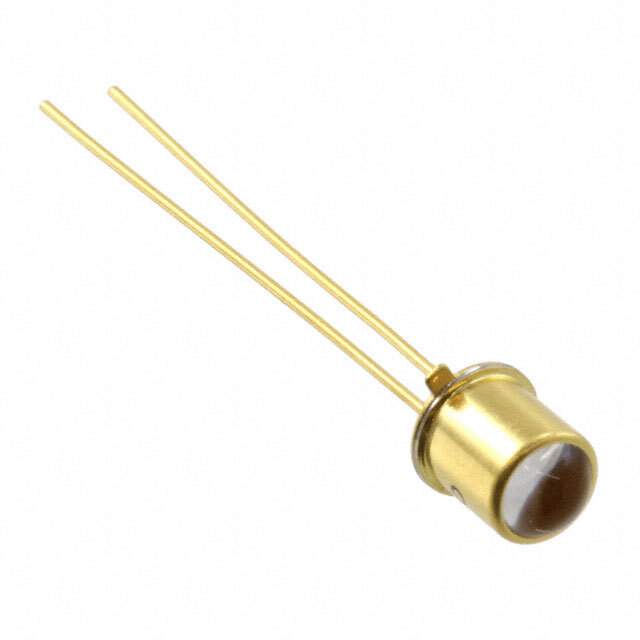

OP236TXV Real Image
Same model may have multiple batches, images only for reference.

OP236TXV

Part No OP236TXV
Manufacturer TT Electronics
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 890NM 100MA TO-46  /  Infrared (IR) Emitter 890nm 1.55V 100mA 18° TO-46-2 Lens Top Metal Can
Datasheet
OP236TXV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 1.55V
Viewing Angle 18°
Orientation Top View
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case TO-46-2 Lens Top Metal Can
Base Product Number OP236
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 1214674-OP236TXV
Ultra Librarian 3D Model Ultra Librarian OP236TXV CAD Model

Description

The OP236TXV is an infrared LED emitter from TT Electronics/Optek Technology.

  • Manufacturer: TT Electronics/Optek Technology
  • Forward Voltage: 1.55V
  • Forward Current: 100mA
  • Wavelength: 890nm
  • Viewing Angle: 18°
  • Mounting Type: Through Hole
  • Package: TO-46-2 Lens Top Metal Can
  • Operating Temperature Range: -55°C to 125°C
  • RoHS Compliance: Non-Compliant
  • Packaging: Bulk
  • Standard Package: 100 units
