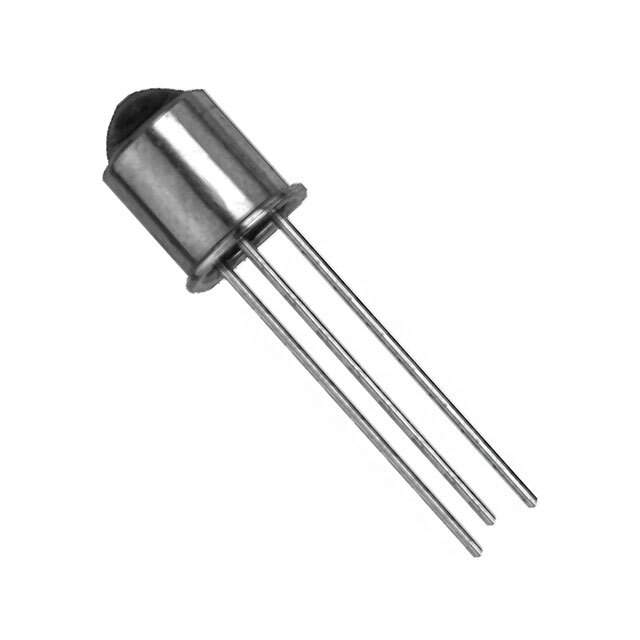

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Voltage - Collector Emitter Breakdown (Max) 15 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 1 µA
Power - Max 250 mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C
Case / Package TO-206AA, TO-18-3 Metal Can
Base Product Number OP830
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Part Number 365-1619,2266-OP830SL,OP830SL-ND
Standard Package 1,000
Win Source Part Number 1331862-OP830SL
Ultra Librarian 3D Model Ultra Librarian OP830SL CAD Model

Description

This electronic component is an optical sensor phototransistor manufactured by TT Electronics/Optek Technology.

  • Win Source Part Number: 1331862-OP830SL
  • Packaging: Bulk
  • Orientation: Top view
  • Standard Package: 1000
  • Mounting Style: Through-hole
  • Maximum Power: 250mW
  • Maximum Voltage for Collector-Emitter Breakdown: 15V
  • Maximum Collector Current: 50mA
  • Temperature Range: -65°C to 125°C
  • Package: TO-206AA, TO-18-3 Metal Can
