Same model may have multiple batches, images only for reference.

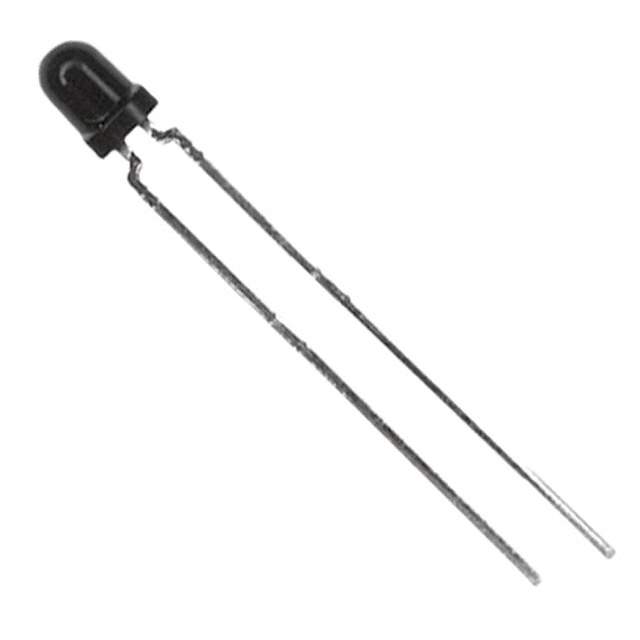

TEFT4300 Real Image
Same model may have multiple batches, images only for reference.

TEFT4300

Part No TEFT4300
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR 3.0MM WIDE VIEW / Phototransistor IR Chip Silicon 925nm 2-Pin T-1
Datasheet
TEFT4300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Maximum Current Collector 50mA
Current - Dark (Id) (Max) 200nA
Wavelength 925nm
Viewing Angle 60°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension Radial, 3mm Dia (T-1)
Win Source Part Number 212801-TEFT4300
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TEFT4300
Introduction Date December 20, 1999
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TEFT4300 CAD Model

Description

This Vishay component is part of the TEFT4300 family and has a viewing angle of 60 degrees.

  • Viewing Angle: 60 degrees
  • Mounting Type: Through-hole
  • Wavelength: 925nm
  • Maximum Collector-Emitter Breakdown Voltage: 70V
  • Maximum Power Dissipation: 100mW
  • Temperature Range: -40°C to 100°C
  • Alternative Parts: SFH309FA-5-Z, SFH309FA-4-Z, SFH309FA-3, and SFH309FA-5/6-Z
  • Halogen-Free: Yes
  • Popularity: 44%
