Same model may have multiple batches, images only for reference.

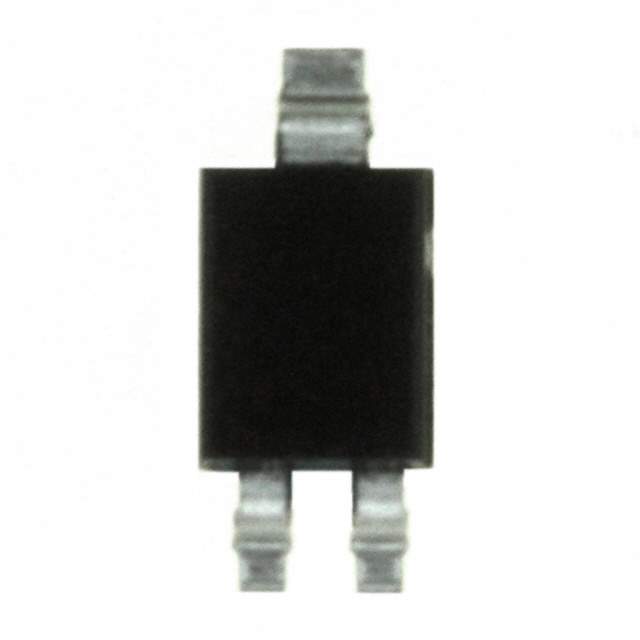

SFH 2400 FA-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 2400 FA-Z

Part No SFH 2400 FA-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description Silicon PIN Photodiode, -40 to 100 °C, 2 x 4.6 x 1.1 mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Fall Time 5 ns
Forward Voltage 1.3 V
Height 1.1 mm
Lead Free Yes
Length 2 mm
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Number of Pins 3
Packaging Cut Tape
Rise Time 5 ns
RoHS Compliant
Schedule B 8541406010
Viewing Angle 120 °
Wavelength 900 nm
Width 4.6 mm
Win Source Part Number 999710-SFH 2400 FA-Z
Categories Optical Sensors - Phototransistors
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SFH 2400 FA-Z CAD Model

Description

The SFH 2400 FA-Z optical sensor phototransistor is a high-performance component manufactured by OSRAM Opto Semiconductors Inc.

  • Pin Count: 3
  • Viewing Angle: 120 degrees
  • Wavelength: 900nm
  • Forward Voltage: 1.3V
  • Rise and Fall Time: 5ns
  • Applications: Optical sensors and phototransistors
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Maximum Operating Temperature: 100 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
