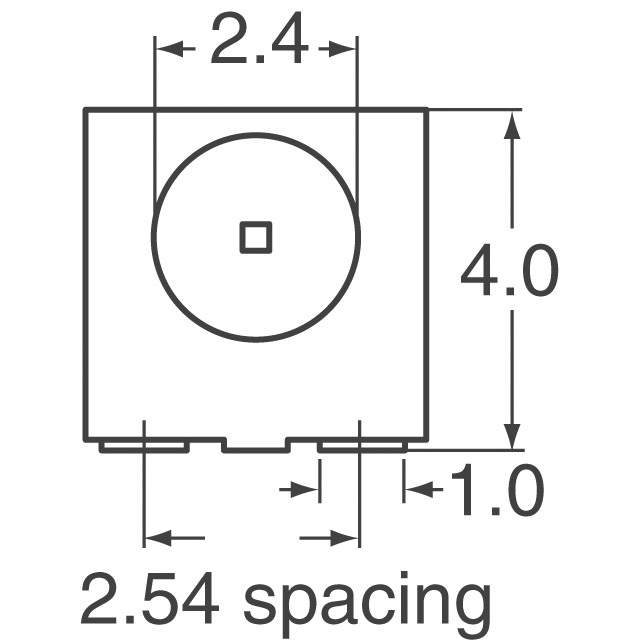

Same model may have multiple batches, images only for reference.

SFH 325-4-Z

Name: SFH 325-4-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1012241
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SFH 325-4-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	Optical Sensors - Phototransistors
Description	SENSOR PHOTO 980NM SID VIEW PLCC / Phototransistors 980nm Side View 2-LCC (J-Lead)
Datasheet	SFH 325-4-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Optical Sensors - Phototransistors
Mfr	ams-OSRAM USA Inc.
Series	SIDELED
Package	Tape & Reel (TR)
Voltage - Collector Emitter Breakdown (Max)	35 V
Current - Collector (Ic) (Max)	15 mA
Current - Dark (Id) (Max)	50 nA
Wavelength	980nm
Viewing Angle	120°
Power - Max	165 mW
Mounting Type	Surface Mount, Right Angle
Orientation	Side View
Temperature Range - Operating	-40°C ~ 100°C (TA)
Package / Case	2-LCC (J-Lead)
Base Product Number	SFH 325
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.7080
Other Names	SFH325-4,SFH3254,SFH 325-4,SFH 325-4-Z-ND,Q65110A2484,SFH325-4-Z,SFH3254Z
Standard Package	2,000
Win Source Part Number	1012241-SFH 325-4-Z
Ultra Librarian 3D Model	Ultra Librarian SFH 325-4-Z CAD Model

Description

The SFH 325-4-Z electronic component is manufactured by ams-OSRAM USA Inc. and is categorized under Sensors, Transducers>Optical Sensors - Phototransistors. It is a surface mount, right-angle device with a 2-LCC (J-Lead) package. The component has a maximum power of 165 mW, a voltage - collector emitter breakdown (max) of 35 V, and a current - collector (Ic) (max) of 15 mA. It has a viewing angle of 120 degrees and a wavelength of 980nm. The MSL level is 2 (1 year), and it is REACH unaffected.
