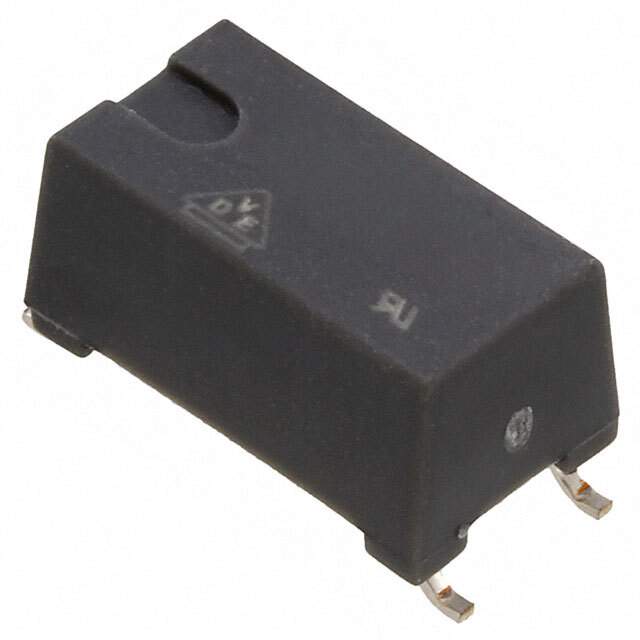

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 13900VDC
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 5μs, 3μs
Rise and Fall Time 2.4μs, 2.7μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 32V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 75mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 85°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 089600-CNY65B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Sensing & Instrumentation, Computers & Computer Peripherals, Communications & Networking
Family Name CNY65
Introduction Date April 09, 1999
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CNY65B CAD Model

Description

CNY65B Optocoupler

The CNY65B is a highly reliable optocoupler designed to provide strong insulation between input and output with a phototransistor output. It is typically used in electronic applications where signal isolation is necessary.

  • Applications:
    • Switching Power Supply Feedback
    • Data Isolation
    • Microcontroller Input Isolation
    • Telecommunication Equipments
  • Features and Benefits:
    • High Isolation Voltage for Enhanced Safety
    • Reliable and Long-Lasting Performance
    • Strong Performance in AC and DC Applications
    • Compact Package for Easy Integration
  • Additional Details: The CNY65B is RoHS compliant, emphasizing its environmental safety and modern compliance standards.
