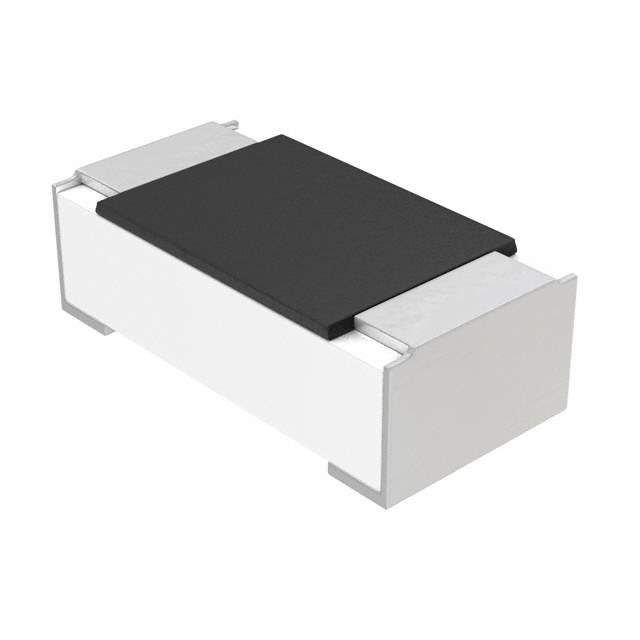

MCS04020C1003FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C1003FE000

Part No MCS04020C1003FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 100K OHM 1% 1/16W 0402
Datasheet
MCS04020C1003FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001271-MCS04020C1003FE000
Manufacturer Vishay
Category Resistors -Chip Resistor - Surface Mount
Series MCS - Professional
Package Tape & Reel (TR) Cut Tape (CT)
Resistance 100 kOhms
Tolerance ±1%
Product Status Active
Operating Temperature -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ultra Librarian 3D Model Ultra Librarian MCS04020C1003FE000 CAD Model

Description

Vishay's MCS series chip resistor is a professional-grade component designed for surface mount applications.

  • Resistance: 100 kOhms
  • Tolerance: ±1%
  • Size / Dimension: 0402 (1005 Metric)
  • Operating Temperature: -55°C to 155°C
  • Packaging: Tape and Reel
