Same model may have multiple batches, images only for reference.

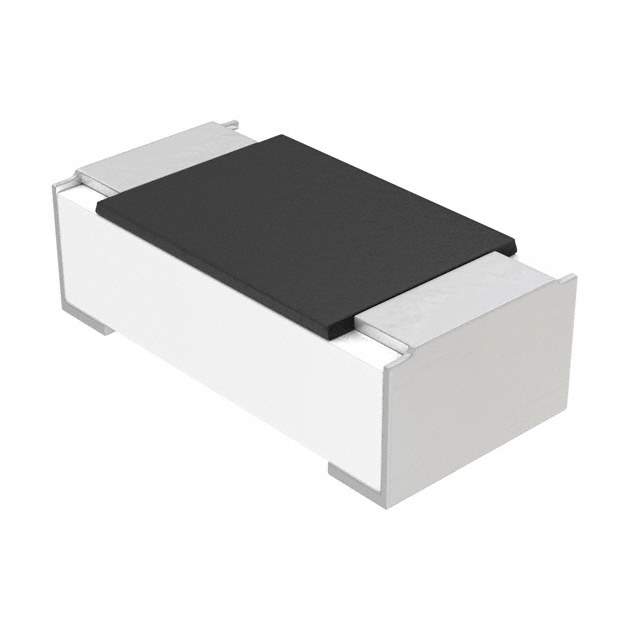

MCS04020C2209FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C2209FE000

Part No MCS04020C2209FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 22 OHM 1% 1/10W 0402 / 22 Ohms ±1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet
MCS04020C2209FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Beyschlag/Draloric/BC Components
Packaging Reel - TR
Resistance 22 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 749-1768-6,749-1768-2,749-1768-1
Standard Package 10,000
Win Source Part Number 1327234-MCS04020C2209FE000
Ultra Librarian 3D Model Ultra Librarian MCS04020C2209FE000 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MCS04020C2209FE000 is a chip resistor that comes in a 0402 (1005 Metric) case/package.

  • Resistance: 22 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Thin Film
  • Power Rating: 0.1W (1/10W)
  • Anti-Sulfur Compliant: Yes
  • Category: Resistors
  • Packaging: Reel
  • Standard Package: 10,000
