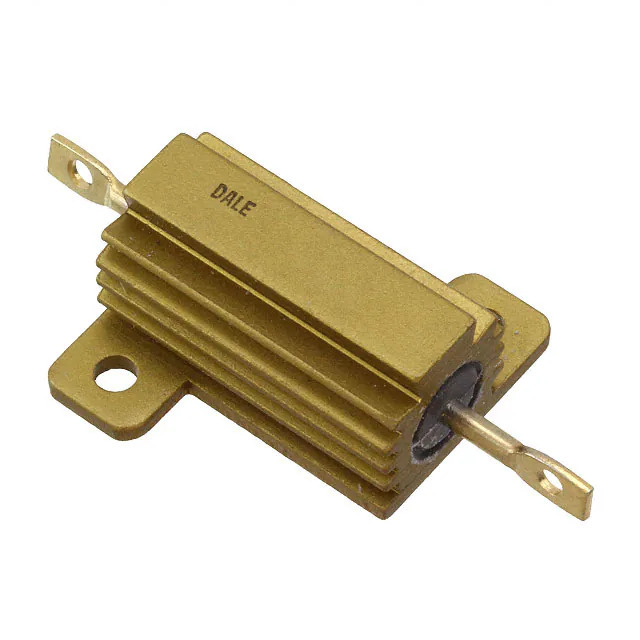

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay Dale
Series RH
Package Bulk
Product Status Active
Resistance 15 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.062" L x 1.080" W (26.97mm x 27.43mm)
Height - Seated (Max) 0.561" (14.25mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Failure Rate -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1373939-RH02515R00FE02
Ultra Librarian 3D Model Ultra Librarian RH02515R00FE02 CAD Model

Description

The RH02515R00FE02 is a chassis mount resistor from Vishay Dale's RH series.

  • Resistance: 15 Ohms
  • Tolerance: ±1%
  • Composition: Wirewound
  • Power (Watts): 25W
  • Features: Moisture Resistant
  • Packaging: Bulk
  • Package / Case: Axial, Box
  • Size / Dimension: 1.062" L x 1.080" W (26.97mm x 27.43mm)
  • Height - Seated (Max): 0.561" (14.25mm)
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±20ppm/°C
  • Operating Temperature: -55°C ~ 250°C
