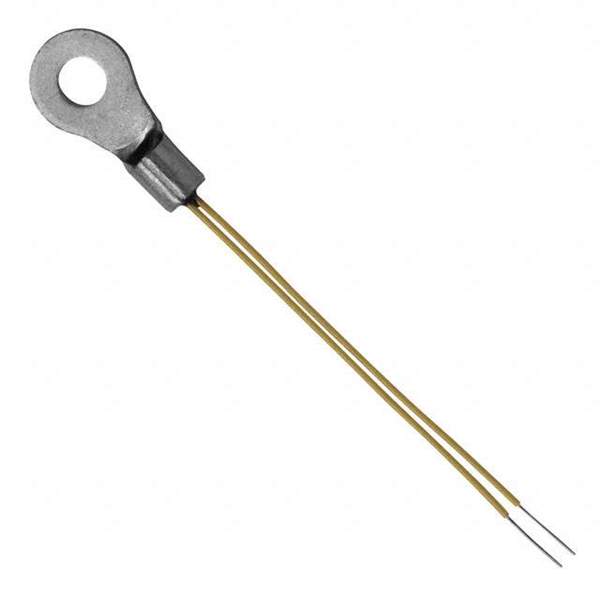

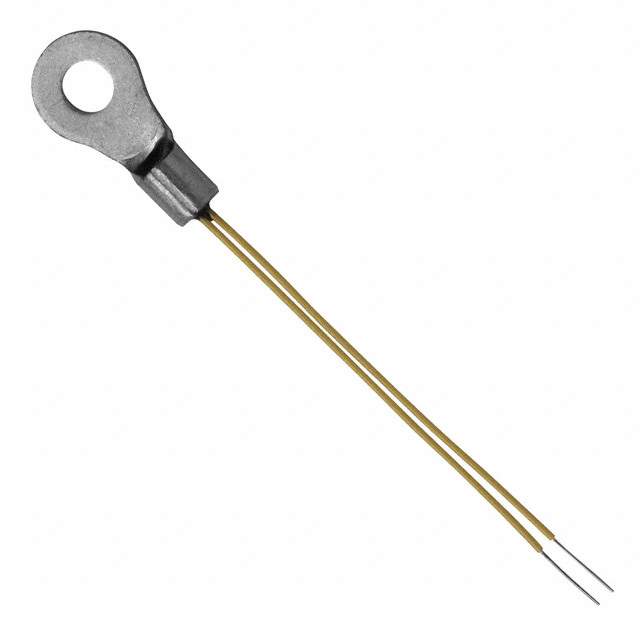

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Temperature Sensors - NTC Thermistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series Automotive, AEC-Q200, NTCA
Package Bulk
Resistance in Ohms @ 25°C 10k
Resistance Tolerance ±2%
B Value Tolerance ±0.5%
B25/85 3984K
Temperature Range - Operating -55°C ~ 125°C
Power - Max 100 mW
Length - Lead Wire 1.77" (45.00mm)
Mounting Type Free Hanging
Package / Case Ring Lug
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names BC2741
Standard Package 500
Win Source Part Number 975700-NTCALUG02A103G
Ultra Librarian 3D Model Ultra Librarian NTCALUG02A103G CAD Model

Description

The Vishay NTCALUG02A103G is an NTC thermistor that is designed for temperature sensing applications.

  • Resistance: 10kΩ ±2%
  • Power Rating: 100mW
  • B25/85: 3984K
  • Package: ring lug
  • Part Usage: common-used
  • Applications: sensors and transducers
  • Standard Package: 500
