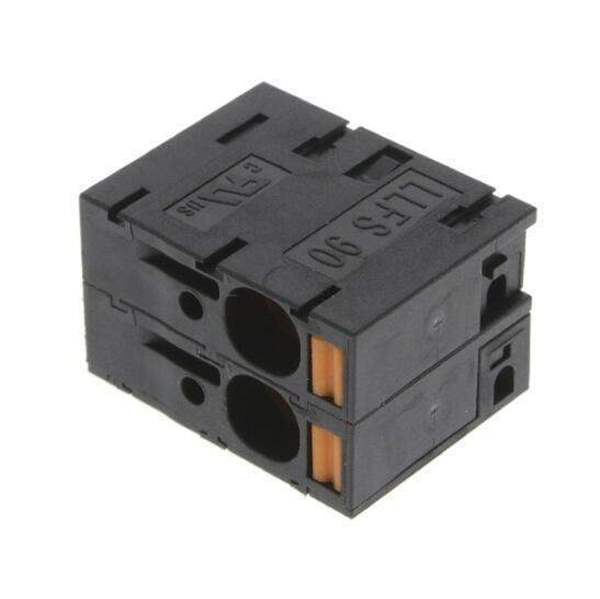

2473000000Weidmüller
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LLFS
Package Bulk
Product Status Active
Pitch 0.295" (7.50mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Features Push Button Actuated
Operating Temperature -40°C ~ 120°C
Housing Material Thermoplastic, Wemid
Win Source Part Number WS1207283-2473000000
Ultra Librarian 3D Model Ultra Librarian 2473000000 CAD Model

Description

The sturdy, direct connection for extreme current and voltage requirements in all power electronics applications such as solar inverters, frequency converters, servo-controllers and power supplies.
