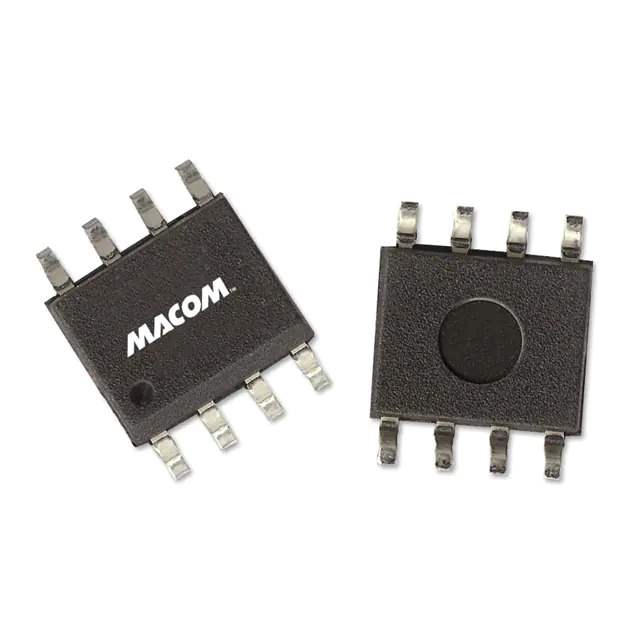

MAPDCC0003 Real Image
Same model may have multiple batches, images only for reference.

MAPDCC0003

Part No MAPDCC0003
Manufacturer M/A-Com Technology Solutions
Catalog RF Power Dividers/Splitters
Description 2-WAY POWER DIVIDER, PB-FREE EQU
Datasheet
MAPDCC0003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr M/A-Com Technology Solutions
Package Tube
Product Status Active
Insertion Loss 0.4dB
Frequency 1.51 GHz ~ 1.66 GHz
Specifications Isolation (Min) 15dB, 1.6 VSWR (Max), 3° Imbalance (Max)
Size / Dimension 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 629108-MAPDCC0003
Ultra Librarian 3D Model Ultra Librarian MAPDCC0003 CAD Model

Description

The MAPDCC0003 is an RF power divider/splitter designed for applications in the frequency range of 1.51GHz to 1.66GHz.

  • Frequency Range: 1.51GHz to 1.66GHz
  • Package: 8-SOIC
  • Dimensions: 0.193" L x 0.154" W x 0.069" H
  • Insertion Loss: 0.4dB
  • Isolation: 15dB minimum
  • VSWR: 1.6 VSWR maximum
  • Imbalance: 3° imbalance maximum
  • Manufacturer: M/A-Com Technology Solutions
  • Status: Active
