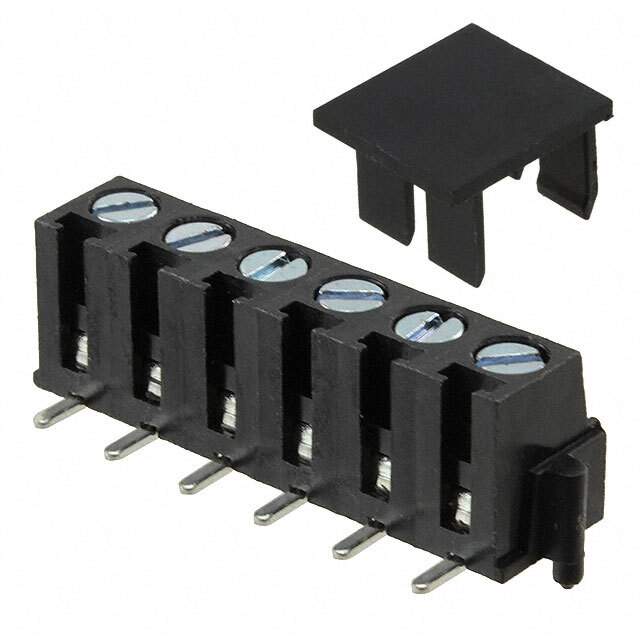

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Wurth Electronics Inc
Series WR-TBL Series 7097
Package Tape & Reel
Number of Levels 1
Positions Per Level 6
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 6 A
Voltage 300 V
Wire Gauge 14-30 AWG
Mounting Type Surface Mount
Wire Termination Screw - Leaf Spring, Wire Guard
Features Board Guide
Color Black
Temperature Range - Operating -40°C ~ 115°C
Housing Material Polyamide (PA46), Nylon 4/6
Contact Material - Plating Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating Steel - Zinc Plated
Torque - Screw 0.4 Nm (3.5 Lb-In)
Screw Thread M3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 200 pcs
Win Source Part Number 1381024-691709710306
Ultra Librarian 3D Model Ultra Librarian 691709710306 CAD Model

Description

The WR-TBL Series 7097 from Wurth Electronics Inc is a wire to board terminal block with 6 positions and 1 level.

  • Positions: 6
  • Levels: 1
  • Pitch: 0.197" (5.00mm)
  • Color: Black
  • Features: Board Guide
  • Mounting Type: Surface Mount
  • Wire Termination: Screw Leaf Spring, Wire Guard
  • Housing Material: Polyamide (PA46), Nylon 4/6
  • Contact Material: Tin Plated
  • Voltage Rating: 300V
  • Current Rating: 6A
  • Operating Temperature: -40°C to 115°C
  • Package: Tape & Reel
  • Standard Package Quantity: 200 pcs
