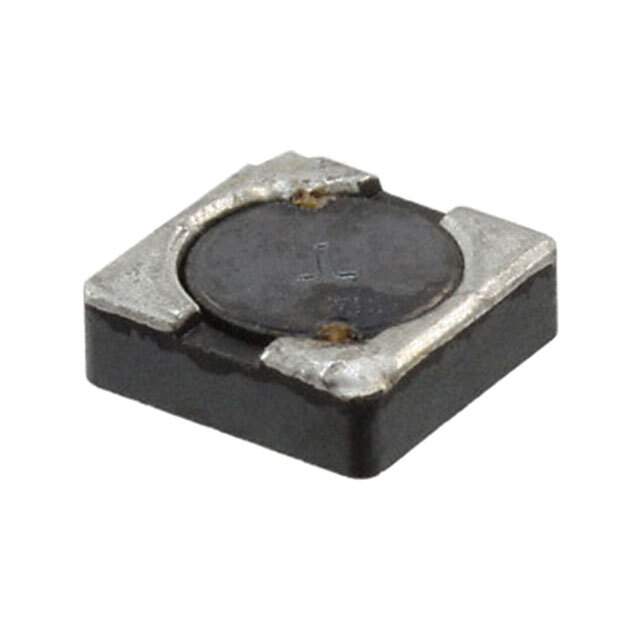

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5 µH
Tolerance ±30%
Current Rating (Amps) 2.15 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 46mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2727 (6868 Metric)
Size / Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.098" (2.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857256-744062005
Ultra Librarian 3D Model Ultra Librarian 744062005 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a range of shielded fixed inductors designed for a variety of electronic applications.

  • Core Type: Drum Core, Wirewound
  • Size: 0.268" L x 0.268" W (6.80mm x 6.80mm)
  • Inductance: 5 µH
  • Maximum Seated Height: 0.098" (2.50mm)
  • Mounting Type: Surface Mount
  • Package: 2727 (6868 Metric)
  • Tolerance: ±30%
  • DC Resistance (DCR): 46mOhm max
  • Current Rating: 2.15 A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ferrite
  • Self-Resonant Frequency: 50MHz
