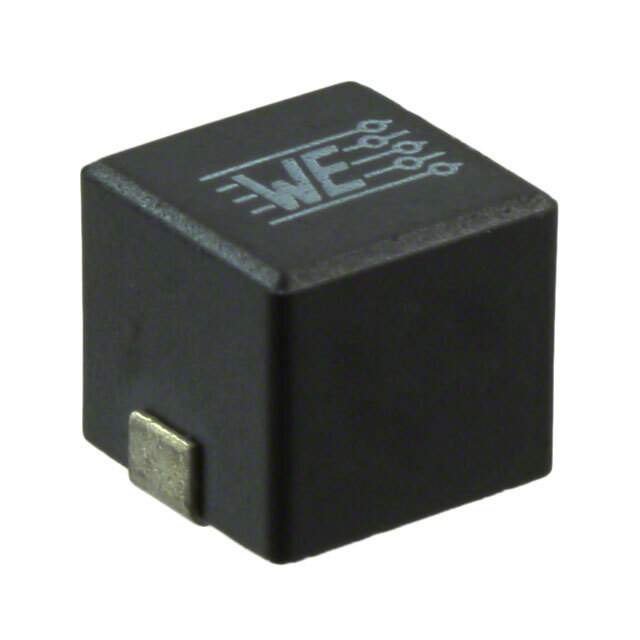

Same model may have multiple batches, images only for reference.

7443341000

Name: 7443341000
Brand: Wurth Electronics Inc
SKU: 857361
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443341000
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 4.4A 41 MOHM SMD
Datasheet	7443341000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	4.4 A
Current - Saturation (Isat)	7A
Shielding	Shielded
DC Resistance (DCR)	41mOhm Max
Frequency - Self Resonant	29MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.331" L x 0.311" W (8.40mm x 7.90mm)
Height - Seated (Max)	0.295" (7.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857361-7443341000
Ultra Librarian 3D Model	Ultra Librarian 7443341000 CAD Model

Alternative Products

Description

The WE-HCC series from Wurth Electronics Inc is a range of shielded drum core, wirewound fixed inductors designed for a variety of electronic applications.

Size: 0.331" L x 0.311" W (8.40mm x 7.90mm)
Inductance: 10 µH
Maximum Seated Height: 0.295" (7.50mm)
Tolerance: ±20%
DC Resistance (DCR): 41mOhm max
Current Rating: 4.4 A
Operating Temperature: -40°C to 125°C
Core Material: Ferrite
Self-Resonant Frequency: 29MHz
