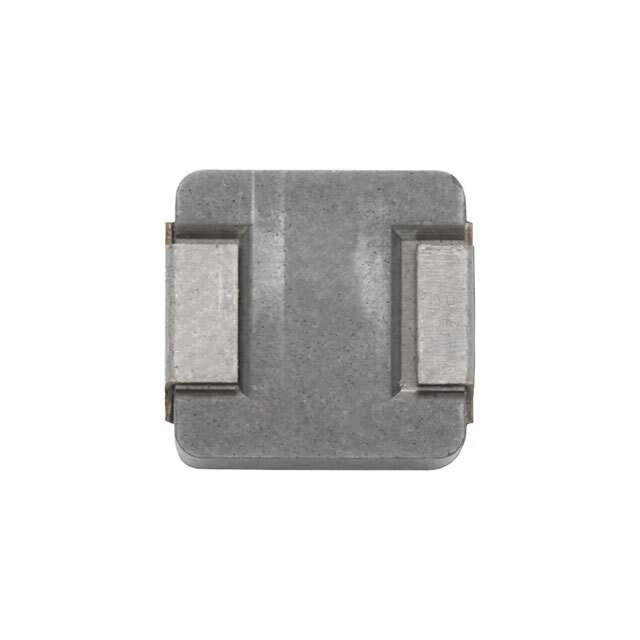

Same model may have multiple batches, images only for reference.

IHLP2525CZER150M01

Name: IHLP2525CZER150M01
Brand: Vishay
SKU: 1064790
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2525CZER150M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2525CZ-01 15 20% ER E3 / 15 µH Shielded Inductor Nonstandard
Datasheet	IHLP2525CZER150M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-2525CZ-01
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	15 µH
Tolerance	±20%
Shielding	Shielded
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP2525CZER150M01DKR,541-IHLP2525CZER150M01TR,541-IHLP2525CZER150M01CT
Standard Package	2,000
Win Source Part Number	1064790-IHLP2525CZER150M01
Ultra Librarian 3D Model	Ultra Librarian IHLP2525CZER150M01 CAD Model

Alternative Products

Description

The IHLP2525CZEN1R5M01 is a fixed inductor from Vishay.

Series: IHLP-2525CZ-01
Package: shielded
Height: 0.118" (3.00mm)
Standard Package: 2,000
Mounting: SMD (SMT)
Tolerance: ±20%
Inductance: 15 µH
Package Format: nonstandard
Dimension: 0.270" L x 0.255" W (6.86mm x 6.47mm)
