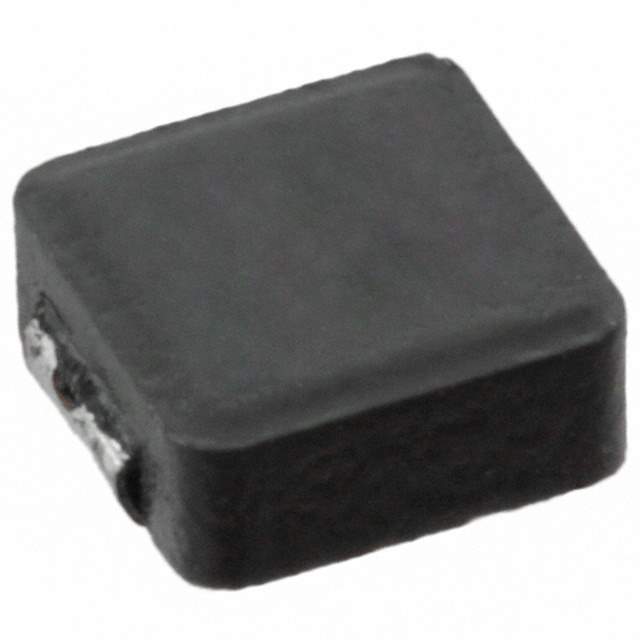

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Type Molded
Material - Core Iron Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 3.8 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq -
Frequency - Self Resonant 64MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 3,000 pcs
Win Source Part Number 1381105-74437324015
Ultra Librarian 3D Model Ultra Librarian 74437324015 CAD Model

Description

The WE-LHMI series inductors from Wurth Electronics Inc are molded fixed inductors designed for various electronic applications.

  • Type: Molded Fixed Inductors
  • Shielding: Shielded
  • Packaging: Tape & Reel
  • Size: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 42mOhm max
  • Current Rating: 3.8 A
  • Saturation Current (Isat): 8A
  • Operating Temperature: -40°C to 125°C
