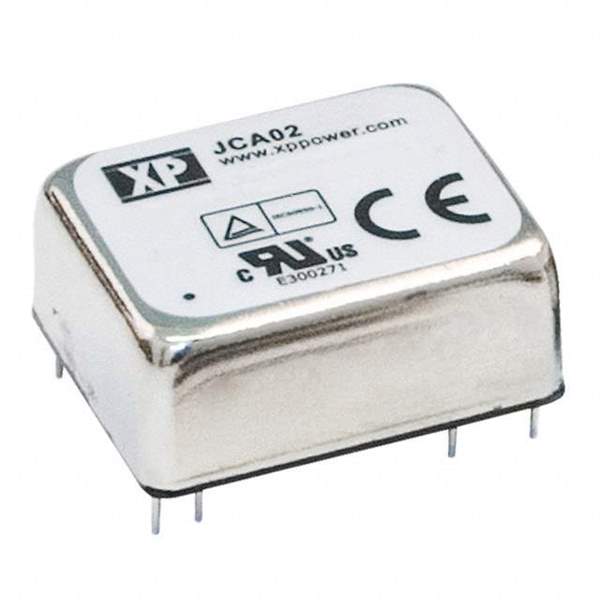

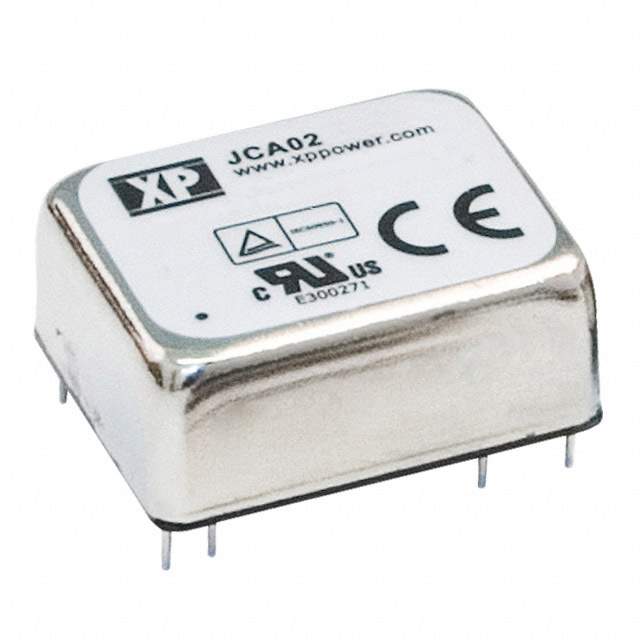

JCA0212S03 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCA (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Current - Output (Max) 600mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 72%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Standard Number 62368-1
Base Product Number JCA0212
Standard Package 16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337477-JCA0212S03
Ultra Librarian 3D Model Ultra Librarian JCA0212S03 CAD Model

Description

The JCA (2W) is an isolated module DC-DC converter suitable for use in ITE (Commercial) applications.

  • Power (Watts): 2W
  • Voltage - Isolation: 1.5kV
  • Size / Dimension: 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
  • Mounting Type: Through Hole
  • Package / Case: 24-DIP Module, 7 Leads
  • Efficiency: 72%
  • Voltage - Output 1: 3.3V
  • Features: OCP, OVP, SCP, UVLO
  • Current - Output 1: 600mA
  • Operating Temperature: -40°C ~ 100°C
  • Packaging: Tube
  • Standard Package: 16
  • Applications: ITE (Commercial)
