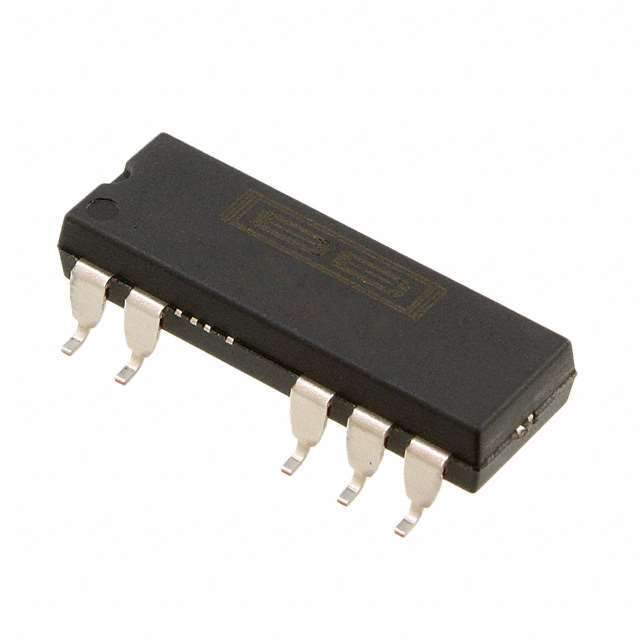

The DCP010505DBP-U/7G4 is a highly reliable, isolated DC-DC converter module from Texas Instruments, designed to offer both isolation and voltage conversion functionality in a compact, surface-mount package. This product is specifically engineered to cater to the stringent requirements of industrial, telecom, and data acquisition systems where isolation is crucial for safety and noise reduction.

Key Features

• Isolation: The module provides 1kV RMS of isolation for 1 minute, enhancing system safety and protecting sensitive circuitry.
• Output Power: It delivers an output power of 1W, making it suitable for a wide range of low-power applications.
• Efficiency: With an efficiency rate of up to 85%, it ensures minimal power loss and heat generation within the system.
• Input Voltage: The input voltage range of 4.5V to 5.5V is ideal for standard 5V supply rails.
• Output Voltage: It provides a dual output of ±5V, which is often required for operational amplifiers and other analog circuits.
• Package: The module comes in a compact 7-Pin DIP package, allowing for ease of integration into existing designs with limited space.
• Temperature Range: It operates over an industrial temperature range of -40°C to +85°C, ensuring reliability in harsh environments.

Applications

The DCP010505DBP-U/7G4 is versatile and can be used in various applications, including:

• Isolated Sensor Interfaces
• Industrial Control Systems
• Test Equipment
• Data Acquisition Systems
• Telecommunications Equipment

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the DCP010505DBP-U/7G4 is no exception. It is designed to meet or exceed the rigorous standards required by industrial and telecom applications, ensuring long-term performance and stability.
