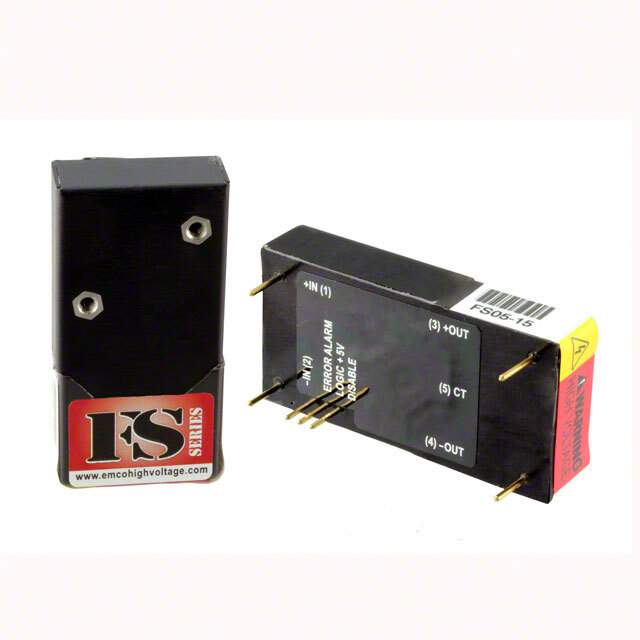

FS10-12 Real Image
Same model may have multiple batches, images only for reference.

FS10-12

Part No FS10-12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description SINGLE O/P, DC-HV DC PCB MOUNT, / Module DC-DC 1-OUT 0V to 1KV 0.01A 10W 8-Pin
Datasheet
FS10-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer XP Power
Series XP EMCO - FS
Packaging Box
Type High Voltage - Isolated Module
Number of Outputs 1
Input Voltage MIN 0.7V
Voltage Input MAX 12V
Voltage - Output 1 1000V
Current - Output (Maximum) 10mA
Power (Watts) 10W
Voltage - Isolation 2.5kV (2500V)
Applications ITE (Commercial)
Features OTP, OVP
Operating Temperature Range -25°C ~ 75°C
Efficiency 85%
Mounting Style Through Hole
Package 4-DIP Module
Dimension 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm)
Win Source Part Number 774766-FS10-12
Popularity Medium
Supply and Demand Status Balance
Family Name FS10-12
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian FS10-12 CAD Model

Description

The FS10-12 is a high voltage-isolated module type electronic component manufactured by XP Power.

  • Power: 10W
  • Efficiency: 85%
  • Operating Temperature Range: -25°C ~ 75°C
  • Voltage Isolation: 2.5kV (2500V)
  • Package: 4-DIP module
  • Win Source Part Number: 774766-FS10-12
