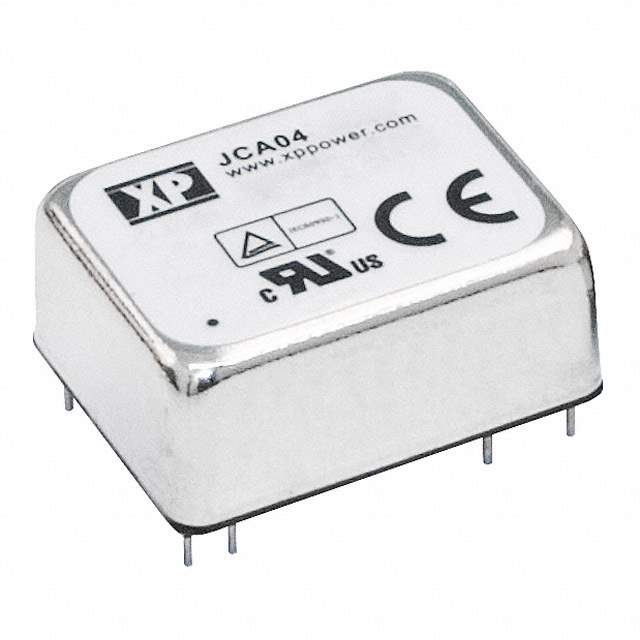

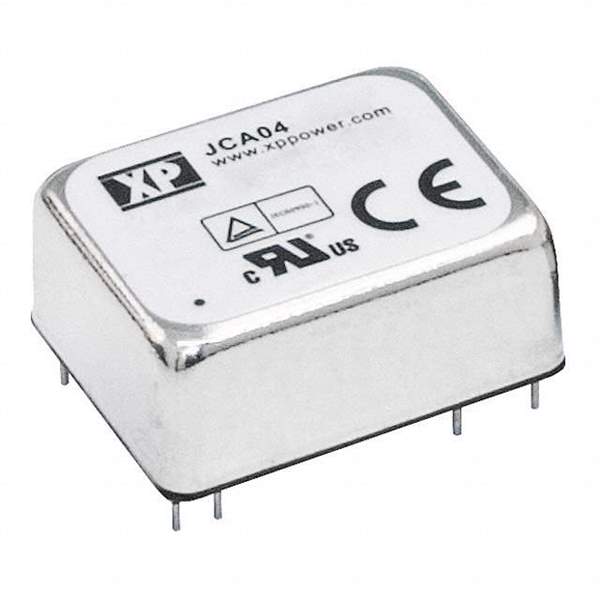

JCA0412S03 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCA (4W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Current - Output (Max) 1.22A
Power (Watts) 4 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Standard Number 62368-1
Base Product Number JCA0412
Standard Package 16
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337478-JCA0412S03
Ultra Librarian 3D Model Ultra Librarian JCA0412S03 CAD Model

Description

The 1337478-JCA0412S03 is a power supply component manufactured by XP Power.

  • Type: Isolated Module
  • Power (Watts): 4W
  • Voltage - Isolation: 1.5kV
  • Applications: ITE (Commercial)
  • Standard Package: 16
  • Features: OCP, OVP, SCP, UVLO
  • Efficiency: 83%
  • Operating Temperature: -40°C to 100°C (With Derating)
