Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer ZF Electronics
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP50 - Dust Protected
Operating Force 60gf
Pretravel 0.157" (4.0mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 120°C
Operating Position 0.420" (10.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 15,000,000 Cycles
Base Product Number DB3C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number DB3C-B1LB,CH880
Standard Package 1,120
Win Source Part Number 1323853-DB3CB1LB
Ultra Librarian 3D Model Ultra Librarian DB3CB1LB CAD Model

Description

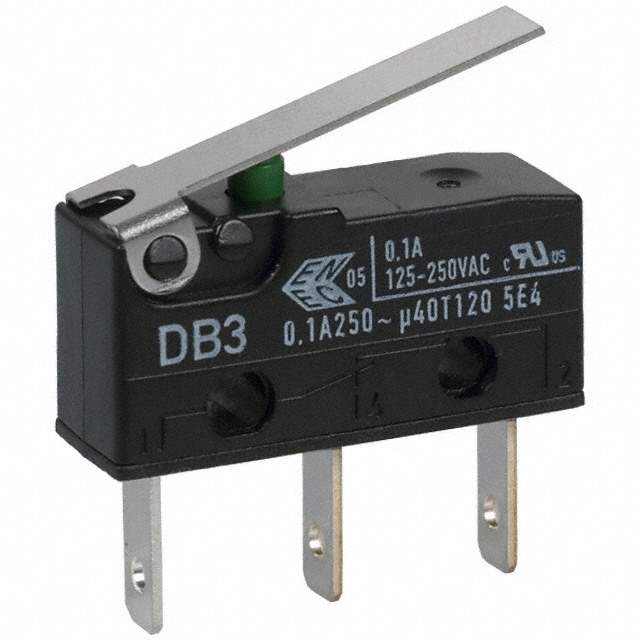

The 1323853-DB3CB1LB from ZF Electronics is a lever, straight actuator type limit switch with a circuit of SPDT.

  • Termination Style: quick connect 0.110” (2.8mm)
  • Ingress Protection Rating: IP50
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 15,000,000 cycles
  • Voltage Rating: 125V AC
  • Current Rating: 100mA (AC)
  • Operating Force: 60gf
  • Pretravel: 0.157” (4.0mm)
  • Differential Travel: 0.020” (0.5mm)
  • Overtravel: 0.079” (2.0mm)
  • Operating Position: 0.420” (10.7mm)
  • Release Force: - N
  • Temperature Range: -40°C to 120°C
  • RoHS3 Compliant: true
  • Mounting: chassis mount
  • Standard Package: 1,120
