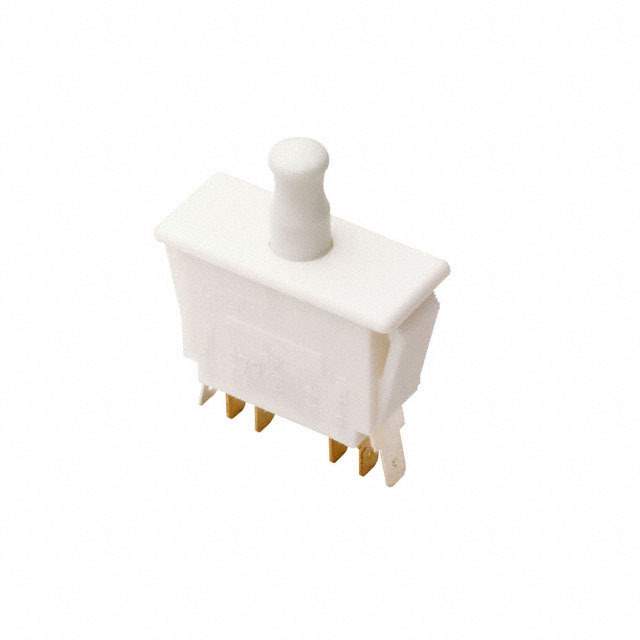

E78-40A Real Image
Same model may have multiple batches, images only for reference.

E78-40A

Part No E78-40A
Manufacturer ZF Electronics
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT DPDT 100MA 125V / Switch DPDT Panel Mount, Snap-In
Datasheet
E78-40A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer ZF Electronics
Packaging Bulk
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Panel Mount, Snap-In
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 680gf
Pretravel 0.125" (3.2mm)
Differential Travel 0.075" (1.9mm)
Overtravel 0.175" (4.5mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.300" (7.6mm)
Electrical Life 6,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number E7840A,2266-E78-40A,0E78-40A,CH570,E78-40A0,0E78-40A0,0E7840A0
Standard Package 1,000
Win Source Part Number 1323816-E78-40A
Ultra Librarian 3D Model Ultra Librarian E78-40A CAD Model

Description

The ZF Electronics 1323816-E78-40A is a limit switch that is designed for various applications.

  • Circuit: DPDT
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC
  • Current Rating: 100mA AC
  • Termination Style: Quick Connect 0.187 inches
  • Actuator Type: Round Pin Plunger
  • Operating Force: 680gf
  • Mechanical Life: 6000 cycles
  • Ingress Protection: IP67
