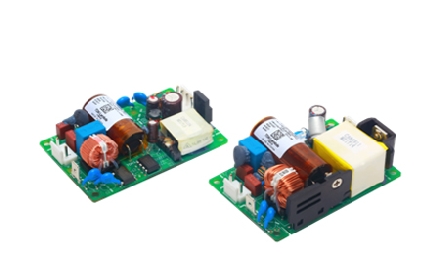

High reliability and high efficiency ultra-thin conduction cooling switching power supply CUS200LD

TDK Corporation has released TDK-Lambda brand CUS200LD series. The series supports global input voltages of 85~265VAC, peak 200W (10s) and maximum conduction cooling power of 150W, and multiple single output voltages from 3.3V to 48V. It is suitable for high reliability fanless applications. Can be widely used in LED display and signage, broadcasting and professional audio, test and measurement, analytical instruments and other industrial applications, with excellent price/performance ratio.

Applications

LED display and signage

Broadcast and professional audio

Test and Measurement Equipment

Analytical Instruments

Other industrial applications

Main features

Compact Size: 60x160x31mm (2.4” x 6.3” x 1.2”)

Efficiency: up to 90%

Natural cooling 120W, conduction cooling 150W (conduction cooling through chassis), peak 200W (10s)

Output Model: 3.3V, 4.2V, 5V, 7.5V, 12V, 15V, 24V, 28V, 48V

Optional model: /CO (coating)

Wide operating temperature range: -25°C ~ +70°C, -40°C can start

Safety Regulations: Acquired IEC/EN/UL60950-1
