Same model may have multiple batches, images only for reference.

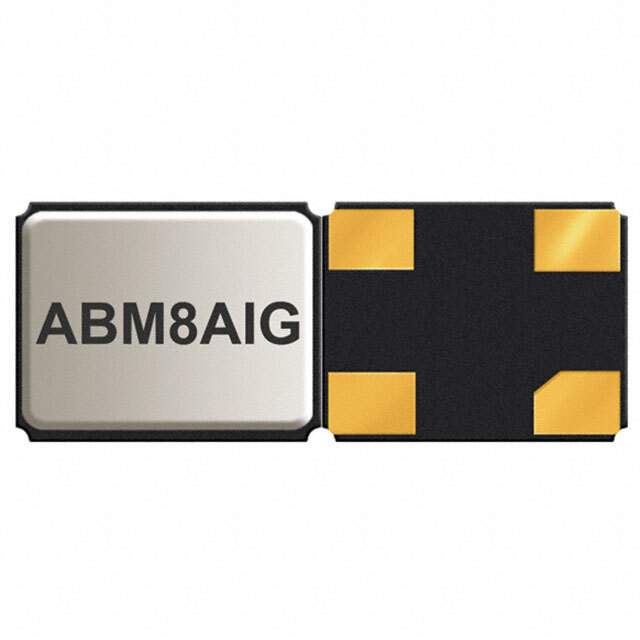

ABM8AIG-8.000MHZ-1Z-T Real Image
Same model may have multiple batches, images only for reference.

ABM8AIG-8.000MHZ-1Z-T

Part No ABM8AIG-8.000MHZ-1Z-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±10ppm Crystal 18pF 500 Ohms 4-SMD, No Lead
Datasheet
ABM8AIG-8.000MHZ-1Z-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM8AIG
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±10ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 500 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1341466-ABM8AIG-8.000MHZ-1Z-T
Ultra Librarian 3D Model Ultra Librarian ABM8AIG-8.000MHZ-1Z-T CAD Model

Description

The ABM8AIG-8.000MHZ-1Z-T is a crystal manufactured by Abracon LLC.

  • Product Name: ABM8AIG-8.000MHZ-1Z-T
  • Manufacturer: Abracon LLC
  • Series: ABM8AIG
  • Crystal Type: MHz Crystal
  • Package: Tape and Reel
  • Length: 0.126 inches
  • Width: 0.098 inches
  • Seated Height: 0.031 inches
  • Frequency: 8 MHz
  • ESR: 500 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±10ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
