Same model may have multiple batches, images only for reference.

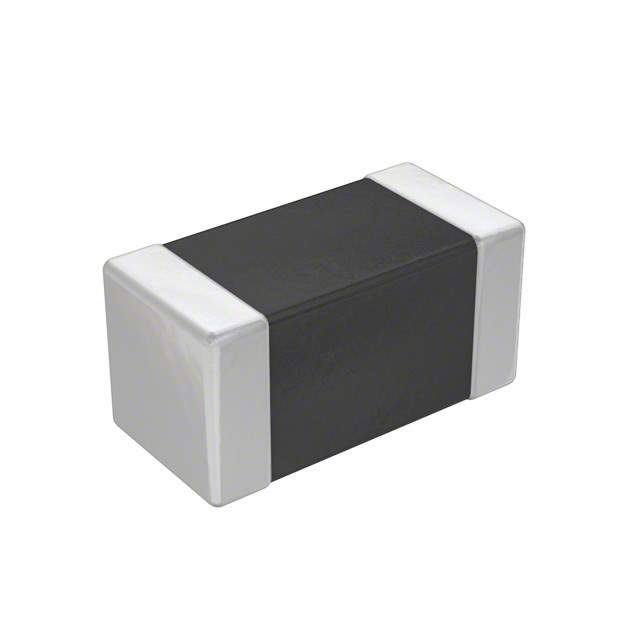

ASMCI-0603-R10M-T Real Image
Same model may have multiple batches, images only for reference.

ASMCI-0603-R10M-T

Part No ASMCI-0603-R10M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 100NH 700MA 140MOHM SM / 100 nH Shielded Multilayer Inductor 700 mA 140mOhm 0603 (1608 Metric)
Datasheet
ASMCI-0603-R10M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASMCI-0603
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 100 nH
Tolerance ±20%
Current Rating (Amps) 700 mA
Shielding Shielded
DC Resistance (DCR) 140mOhm
Frequency - Self Resonant 240MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-12253-6,535-12253-2,535-12253-1
Standard Package 4,000
Win Source Part Number 1078601-ASMCI-0603-R10M-T
Ultra Librarian 3D Model Ultra Librarian ASMCI-0603-R10M-T CAD Model

Description

The ASMCI-0603 series inductor is a surface mount fixed inductor that measures 0.063 inches in length and 0.031 inches in width.

  • Inductance: 100 nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 140mOhm
  • Inductance Frequency Test: 1 MHz
  • Frequency Self-Resonant: 240MHz
  • Applications: electronics, telecommunications, and computers
  • Package: Tape and reel
  • Standard Package: 4,000
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Abracon LLC
