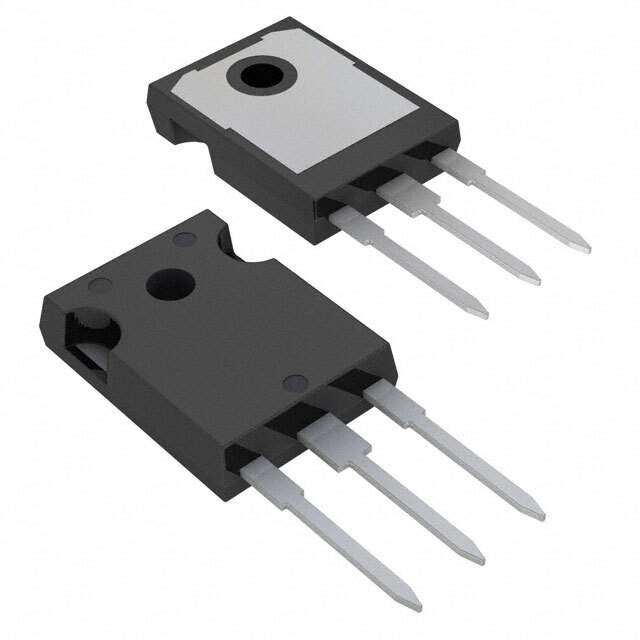

AOK20B120E1 Real Image
Same model may have multiple batches, images only for reference.

AOK20B120E1

Part No AOK20B120E1
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description Low turn-off switching loss due to fast turn-off time
Datasheet
AOK20B120E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Series Alpha IGBT
Packaging Tube
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 40A
Current - Collector Pulsed (Icm) 80A
Vce(on) (Maximum) @ Vge, Ic 2.1V @ 15V, 20A
Power - Max 333W
Switching Energy 830μJ (off)
Input Type Standard
Gate Charge 60.5nC
Td (on/off) @ 25°C -/134ns
Test Condition 600V, 20A, 15 Ohm, 15V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247
Win Source Part Number 1144944-AOK20B120E1
Manufacturer Homepage www.aosmd.com
Family Name AOK20B120E1
Introduction Date April 21, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOK20B120E1 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOK20B120E1 is an Alpha IGBT series device with a voltage - collector emitter breakdown (maximum) of 1200V and a current - collector (Ic) (maximum) of 40A.

  • Series: Alpha IGBT
  • Voltage - Collector Emitter Breakdown (Maximum): 1200V
  • Current - Collector (Ic) (Maximum): 40A
  • Power - Max: 333W
  • Gate Charge: 60.5nC
  • Package: TO-247-3
  • Mounting: Through Hole
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Popularity: Medium
  • Supply and Demand: Balance
