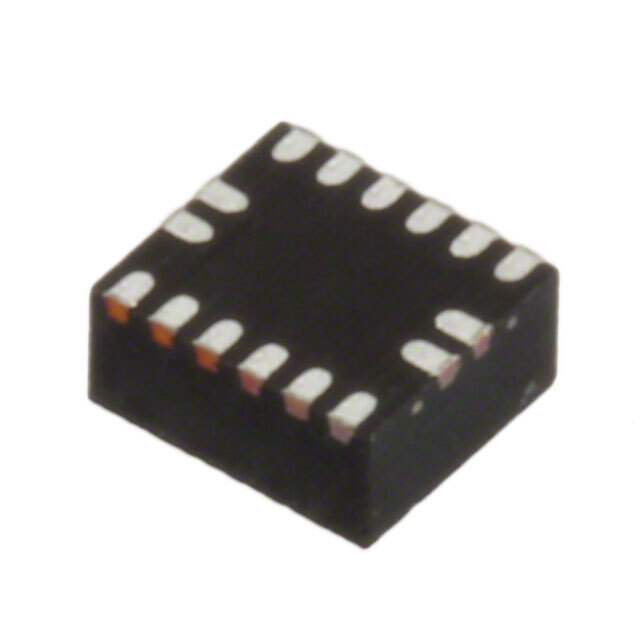

EP5358LUI

Part No EP5358LUI
Manufacturer Altera
Catalog Power Supplies Board Mount DCDC Converters
Description Conv DC-DC 2.4V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.25V 0.6A 16-Pin QFN T/R / DC/DC CONVERTER 0.6-5.2V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Altera
Standard Package 1
Category Power Supplies - Board Mount
Family DC DC Converters
Series 5300
Packaging Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 5.2 V
Current - Output (Max) 600mA
Applications ITE (Commercial)
Features Remote On/Off OCP OTP SCP UVLO
Mounting Style SMD/SMT
Package 16-QFN
Size / Dimension 0.10" L x 0.09" W x 0.04" H (2.5mm x 2.3mm x 1.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Catalog Enpirion 5300 Series
Win Source Part Number 040167-EP5358LUI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name EP5358LUI
Introduction Date February 01, 2018
ECCN EAR99
Country of Origin Indonesia, Taiwan, Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian EP5358LUI CAD Model

Description

EP5358LUI from Altera is listed in the Power Supplies Board Mount DCDC Converters category and is typically relevant to embedded systems, communications hardware, and compact board-level power designs that need efficient point-of-load conversion. Engineers often evaluate parts in this class for powering FPGAs, processors, memory rails, and other digital loads where board space, integration, and power integrity matter. As a board-mount DCDC solution, EP5358LUI may be considered for designs that want to simplify power architecture and reduce external component complexity, but exact electrical specifications should be confirmed in the official datasheet before design-in. The current lifecycle status for this part is information not available, so procurement and engineering teams should verify whether it remains active or is subject to supply constraints. RoHS compliance information is also not available from the provided input. For regulated or export-sensitive projects, always request the latest compliance documentation directly from the manufacturer or authorized channel.
