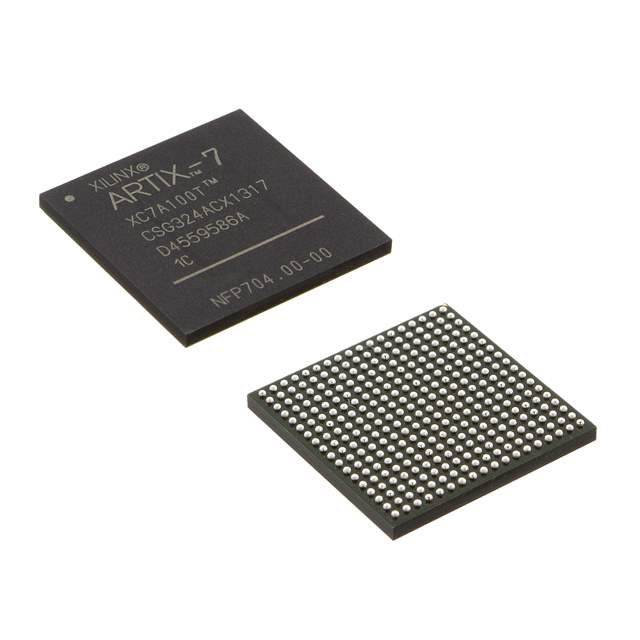

XC7A100T-3CSG324E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Artix-7
Package Tray
Number of LABs/CLBs 7925
Number of Logic Elements/Cells 101440
Total RAM Bits 4976640
Number of I/O 210
Voltage - Supply 0.95V ~ 1.05V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 324-LFBGA, CSPBGA
Supplier Device Package 324-CSPBGA (15x15)
Base Product Number XC7A100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 122-1875
Standard Package 126
Win Source Part Number 984918-XC7A100T-3CSG324E
Ultra Librarian 3D Model Ultra Librarian XC7A100T-3CSG324E CAD Model

Description

The XC7A100T-3CSG324E is an electronic component that belongs to the Artix-7 series of integrated circuits.

  • Win Source Part Number: 984918-XC7A100T-3CSG324E
  • Category: Embedded FPGAs
  • Standard Package: 126
  • Mounting Type: SMD (SMT)
  • I/O: 210
  • LABs/CLBs: 7925
  • Logic Elements/Cells: 101440
  • Total RAM Bit: 4976640
  • Voltage Supply: 0.95V to 1.05V
