EP2A15B724C8 Intel

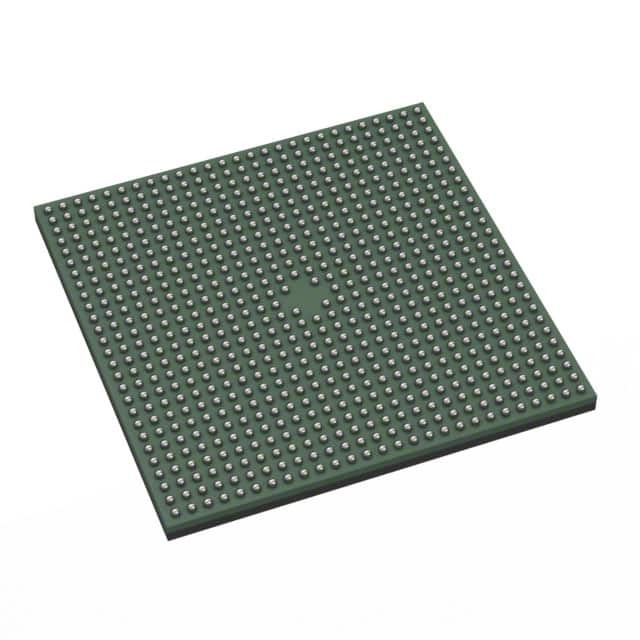

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series APEX II
Package Tray
Product Status Obsolete
Number of LABs/CLBs 1664
Number of Logic Elements/Cells 16640
Total RAM Bits 425984
Number of I/O 492
Number of Gates 1900000
Voltage - Supply 1.425V ~ 1.575V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 724-BBGA, FCBGA
Supplier Device Package 724-BGA (35x35)
Base Product Number EP2A15
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Standard Package 4
Win Source Part Number 1196740-EP2A15B724C8
Ultra Librarian 3D Model Ultra Librarian EP2A15B724C8 CAD Model

Description

The Intel EP2A15B724C8 is an FPGA (Field Programmable Gate Array) integrated circuit that belongs to the APEX II series manufactured by Intel.

  • Package: Tray
  • Standard Package: 4
  • Mounting Style: Surface Mount Device (SMD)
  • I/O: 492
  • LABs/CLBs: 1664
  • Logic Elements/Cells: 16640
  • Total RAM Bits: 425984
  • Number of Gates: 1900000
  • Voltage Supply: 1.425V to 1.575V
  • Package/Case: 724-BBGA, FCBGA
  • Supplier Device Package: 724-BGA (35x35)
  • Temperature Range: 0°C to 85°C (TJ)
  • MSL: 3 (168 hours)
  • HTSUS: 8542.39.0001
  • Base Product Number: EP2A15
  • Product Status: Obsolete
